Game Boy Pocket

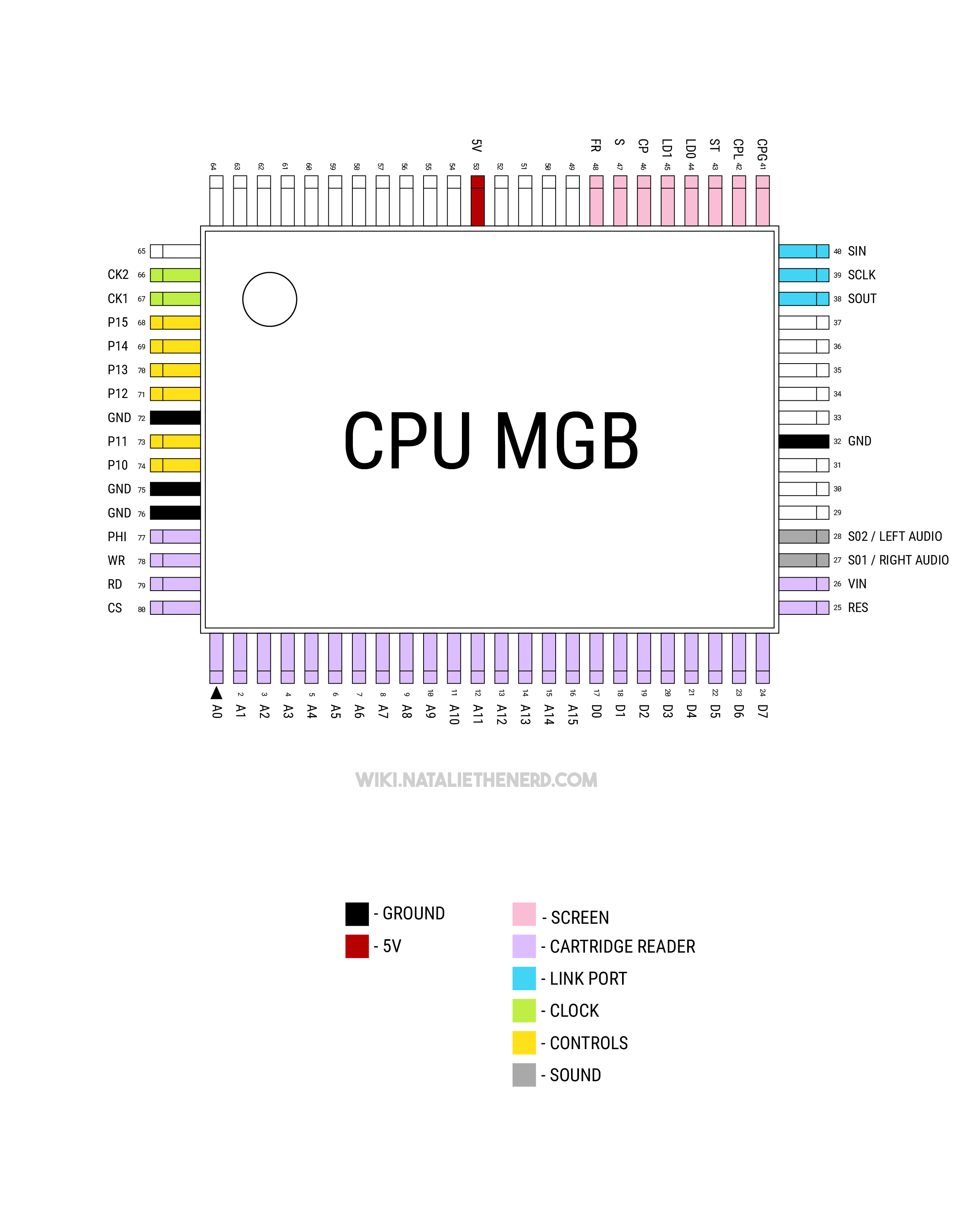

MGB Pinout​

DMG CPU Pinout

Scans​

Scans are from MGB-LCPU-01 click the image to see it full size

Game Boy Pocket Scan Front

Sticker​

This file is a vector (svg), meaning you can edit every aspect of it in a program like inkscape.

Made by me, using vectors from wikipedia and adapting free use fonts.

The Game Boy Pocket back label is roughly 54mm wide.

Game Boy Pocket sticker back label
