DMG Scans

Scans are from DMG-CPU-06

click the image to see it full size

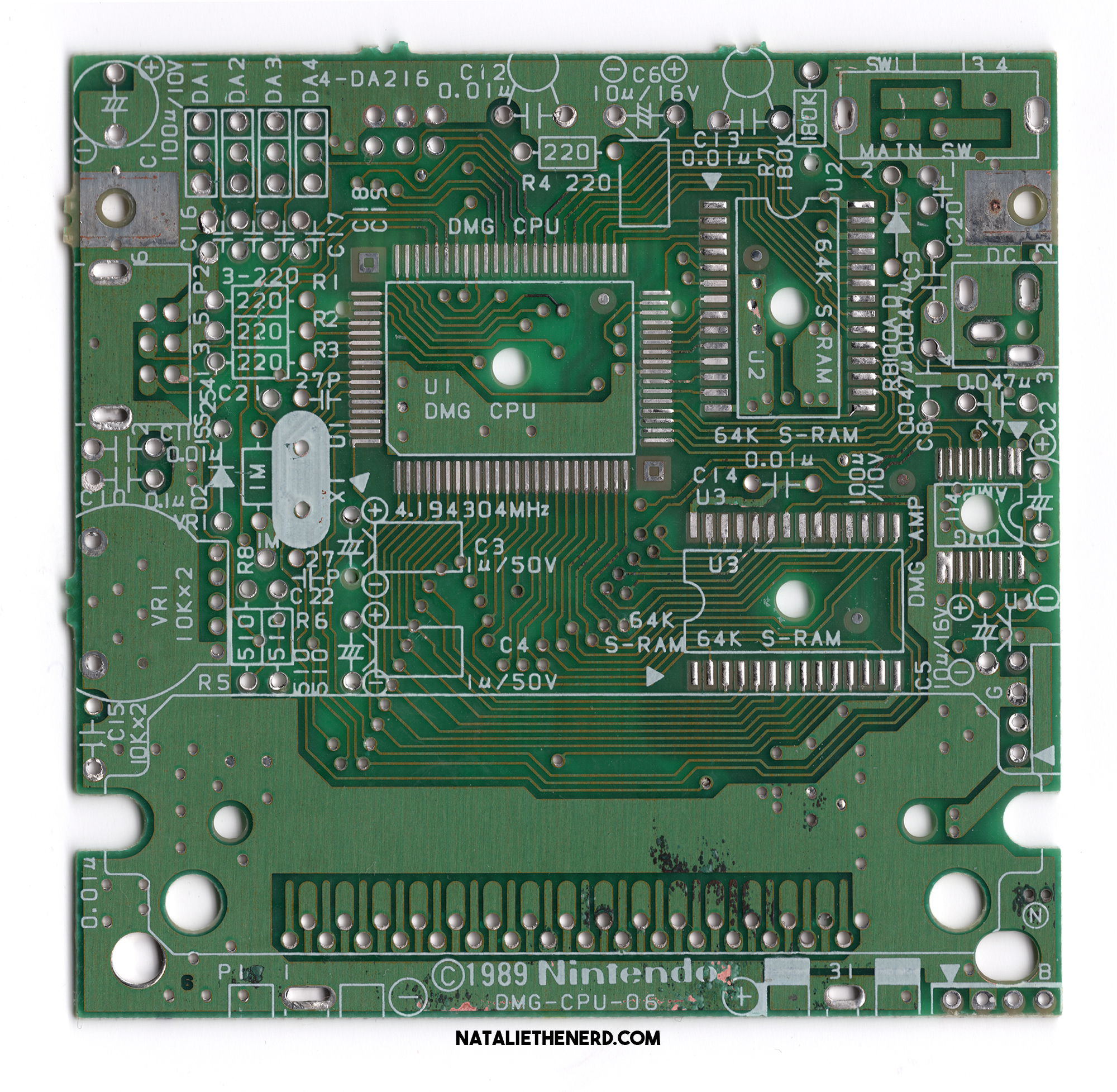

DMG 06 soldermask front​

dmg06_soldermaskfront

DMG 06 soldermask back​

dmg06_soldermaskback

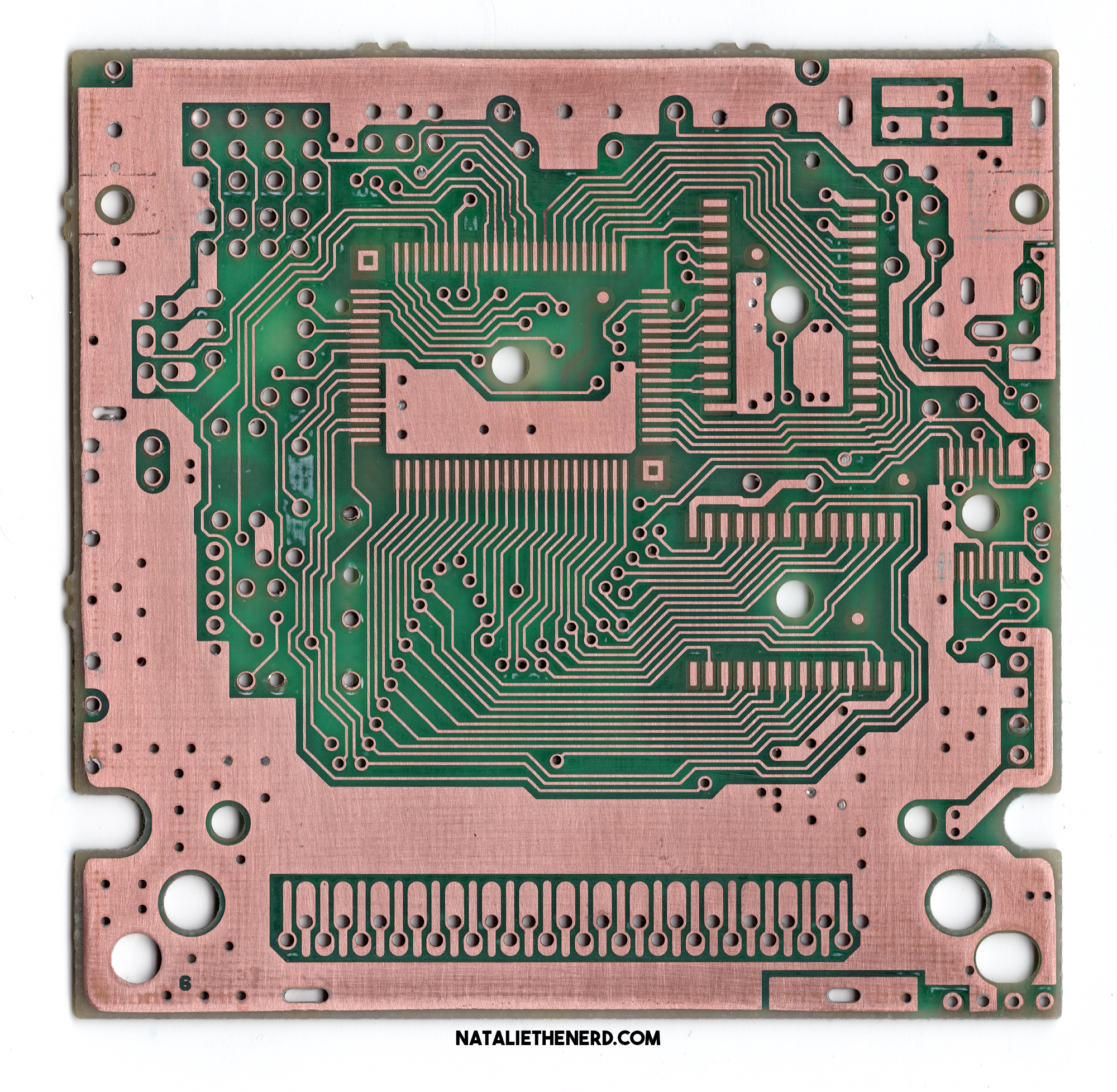

DMG 06 copper front​

dmg06_copperfront

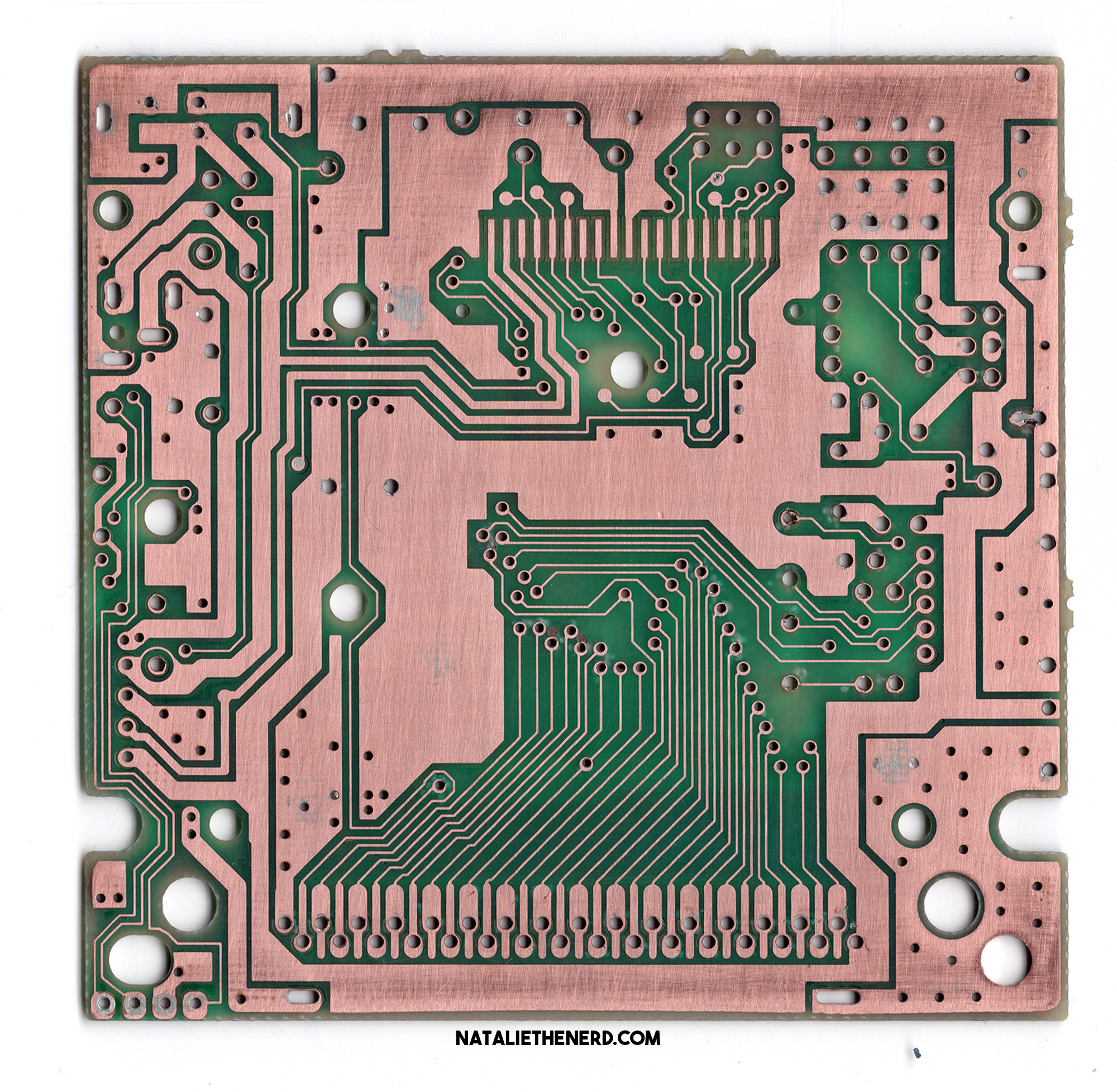

DMG 06 copper back​

dmg06_copperback
