Game Boy Advance Scans

Scans are from AGB-CPU-01 and AGB-CPU-10. CPU 01 is a 40 pin screen motherboard, CPU 10 is a 32 pin screen motherboard

click the image to see it full size

AGB-CPU-01​

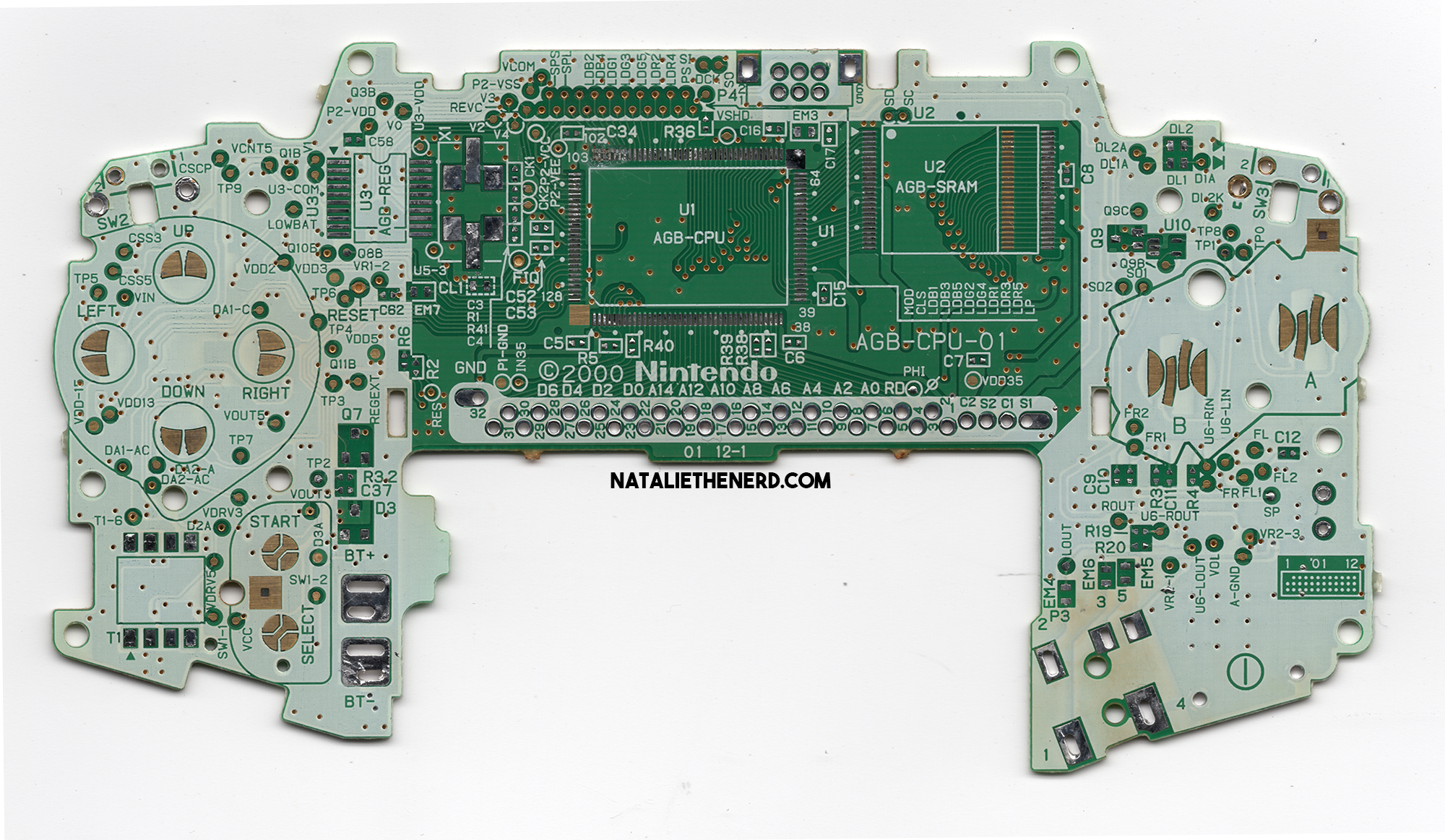

AGB CPU 01 soldermask front​

Game Boy Advance Scan 40 pin Front

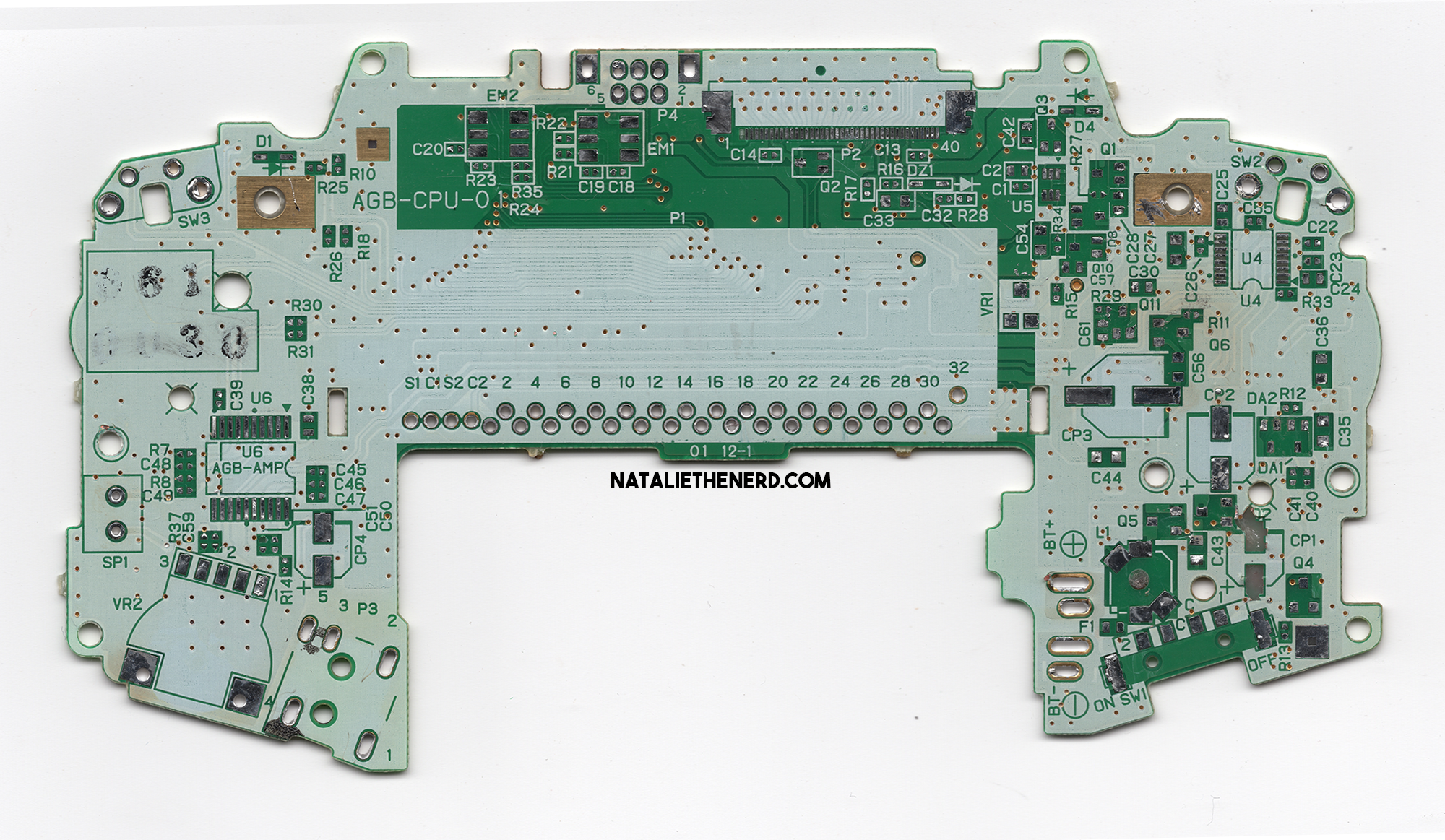

AGB CPU 01 soldermask back​

Game Boy Advance Scan 40 pin Back

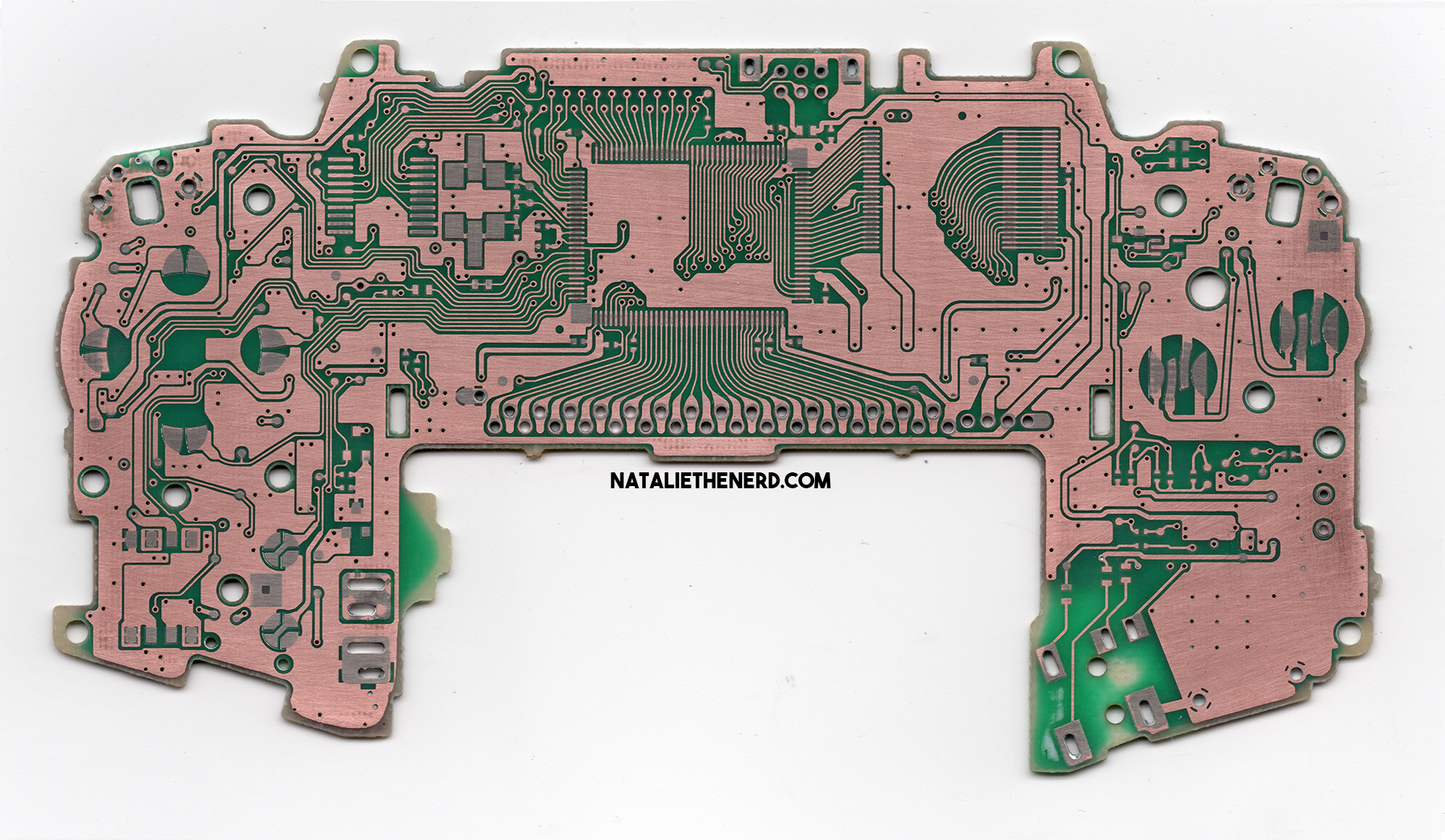

AGB CPU 01 copper front​

Game Boy Advance Copper Scan 40 pin Front

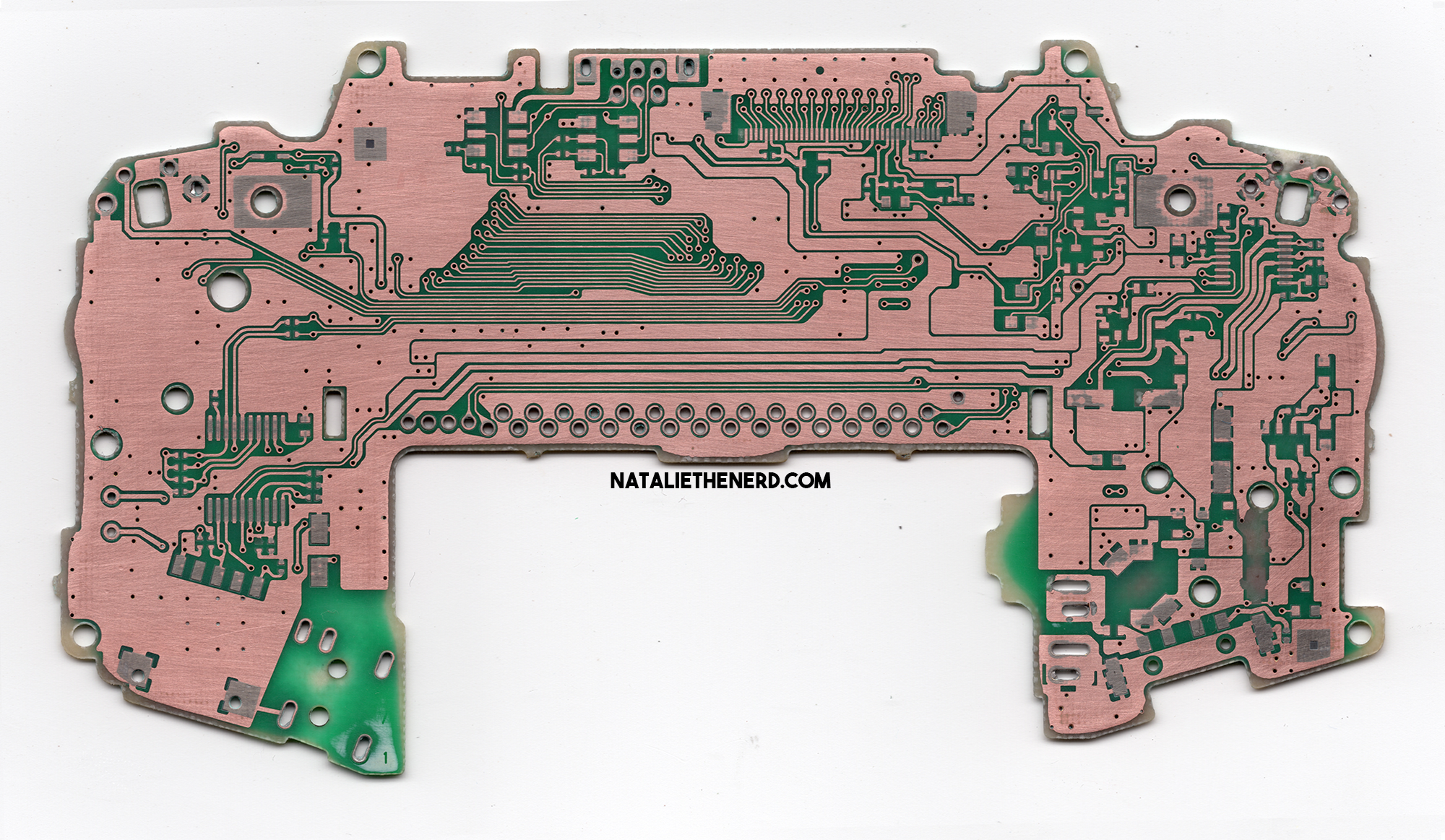

AGB CPU 01 copper back​

Game Boy Advance Copper Scan 40 pin Back

AGB CPU 10​

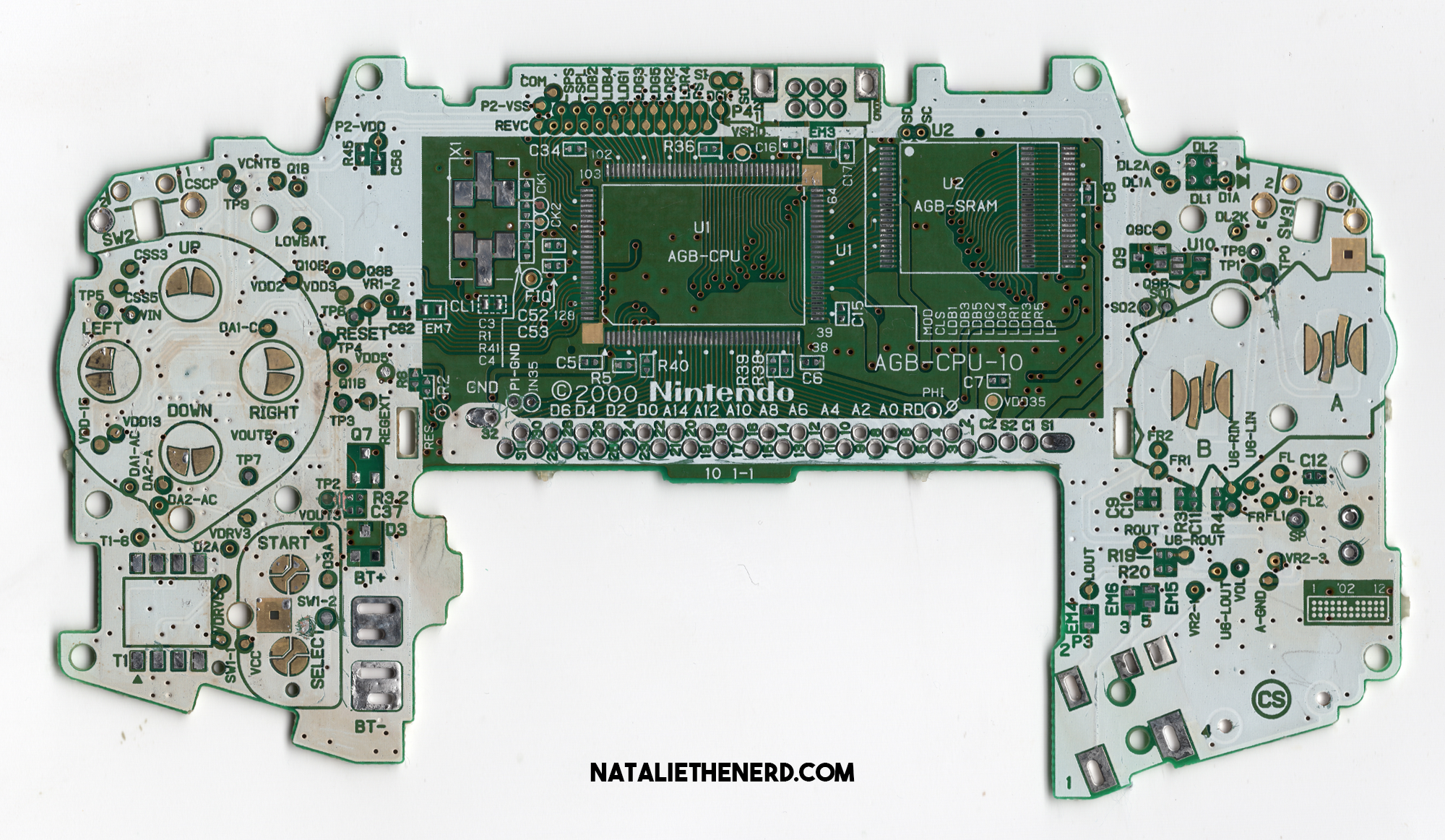

AGB CPU 10 soldermask front​

Game Boy Advance Scan 32 pin Front

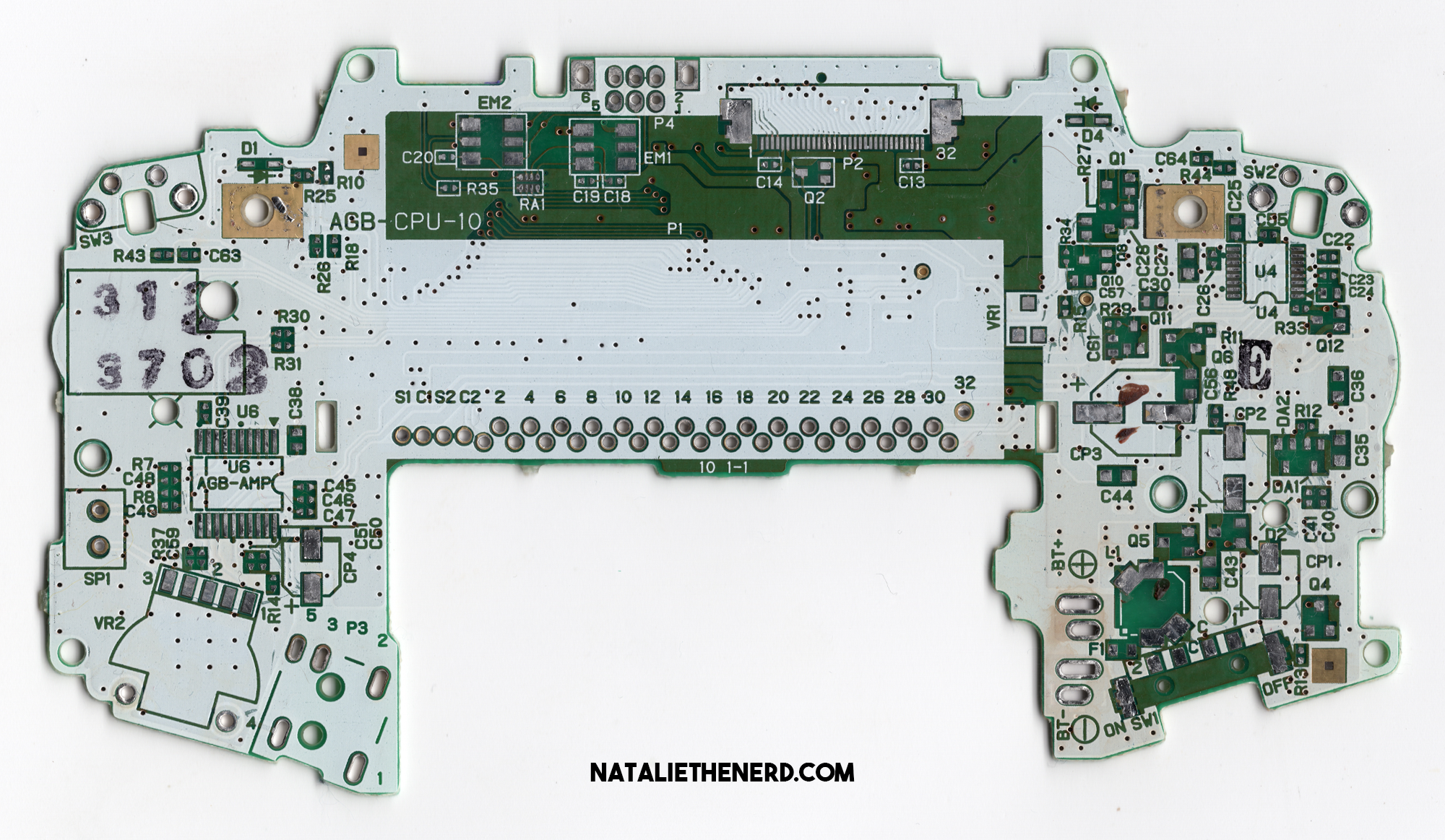

AGB CPU 10 soldermask back​

Game Boy Advance Scan 32 pin Back

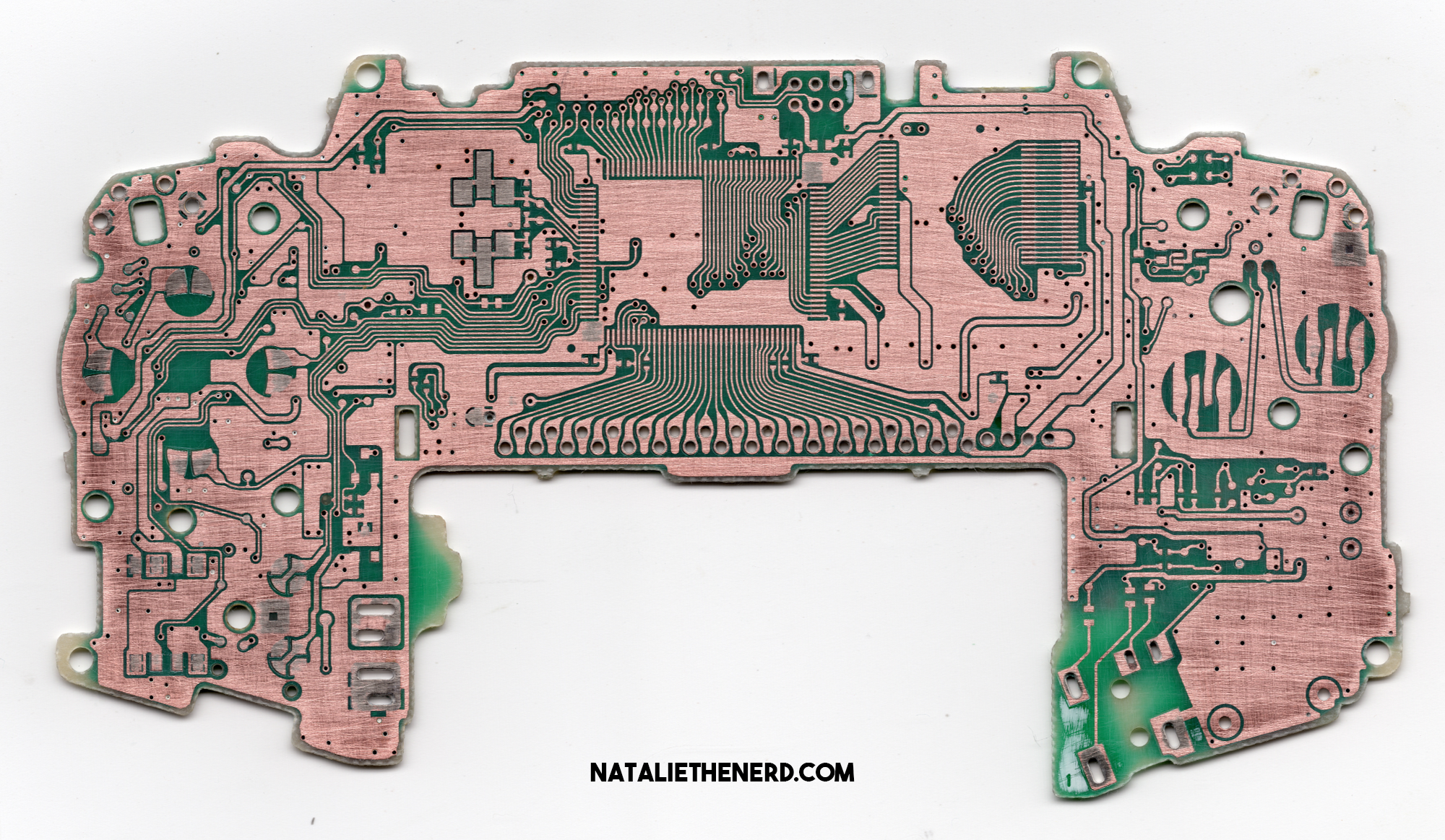

AGB CPU 10 copper front​

Game Boy Advance Copper Scan 32 pin Front

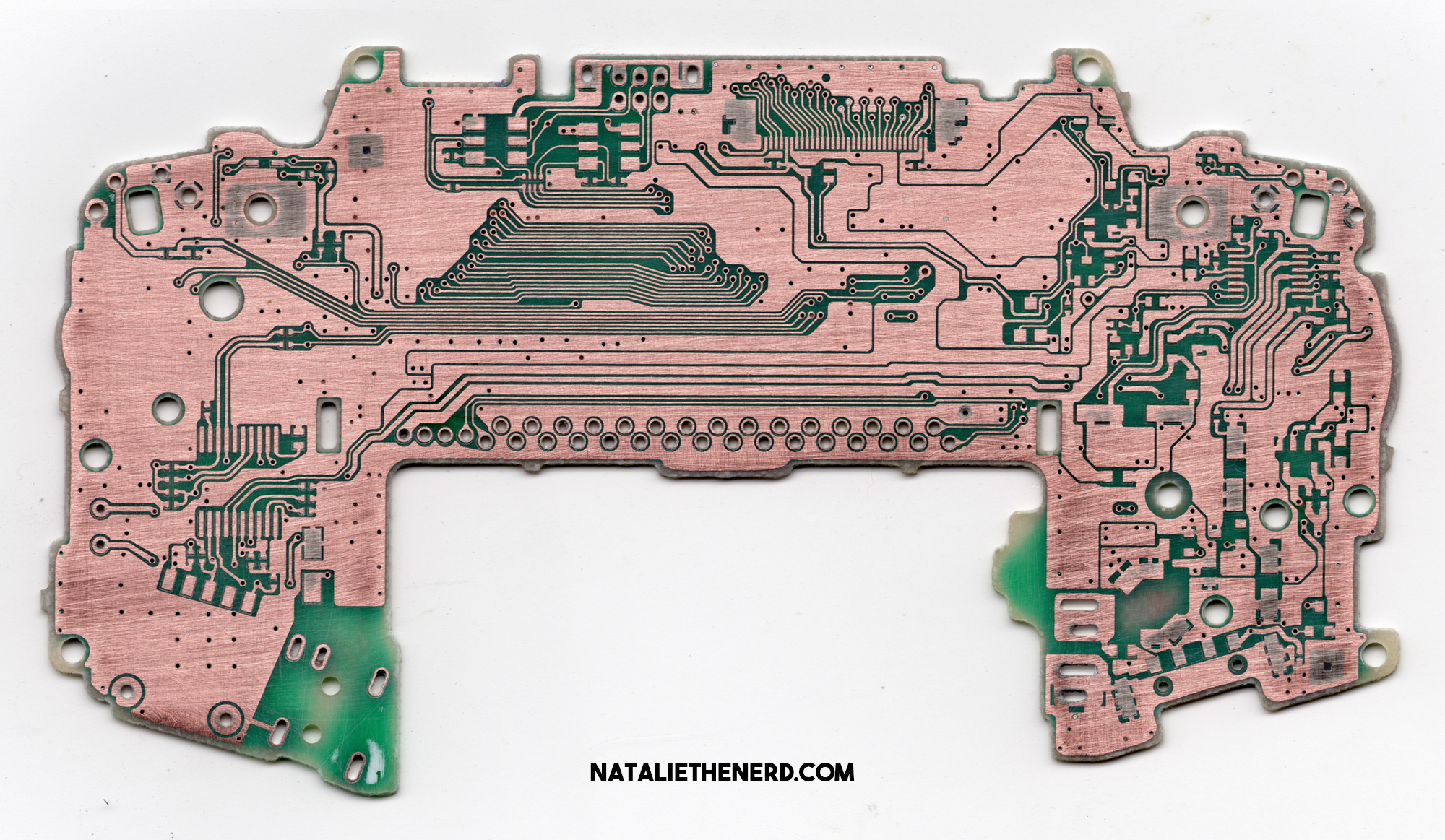

AGB CPU 10 copper back​

Game Boy Advance Copper Scan 32 pin back
