Game Boy Advance SP Scans

Scans are from AGS-CPU-11

click the image to see it full size

This board consists of 4 layers, the inner two layers are ground and power

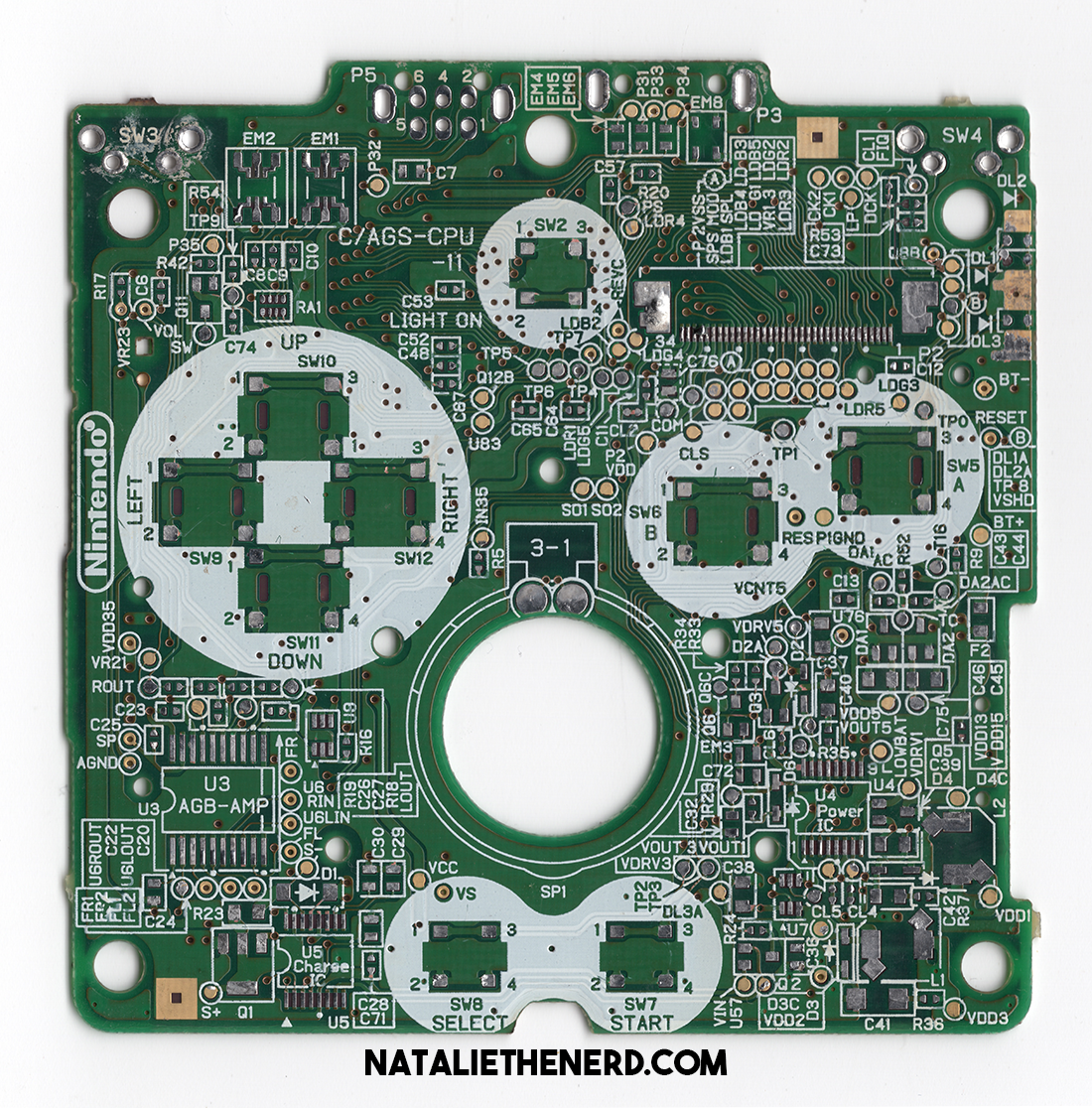

AGS CPU 11 soldermask front​

Game Boy Advance SP Scan Front

AGS CPU 11 soldermask back​

Game Boy Advance SP Scan Back

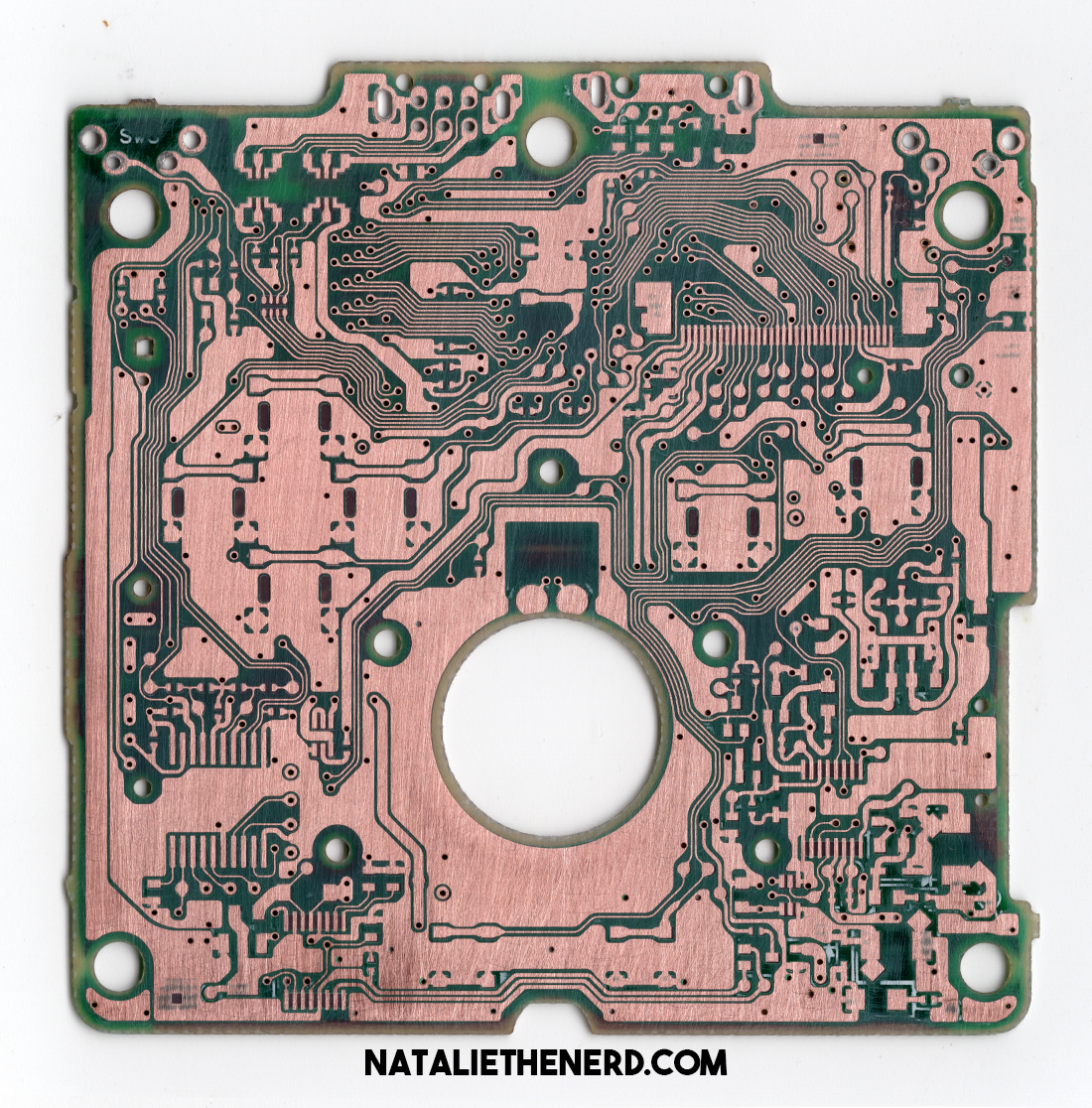

AGS CPU 11 copper front​

Game Boy Advance SP Copper Scan Front

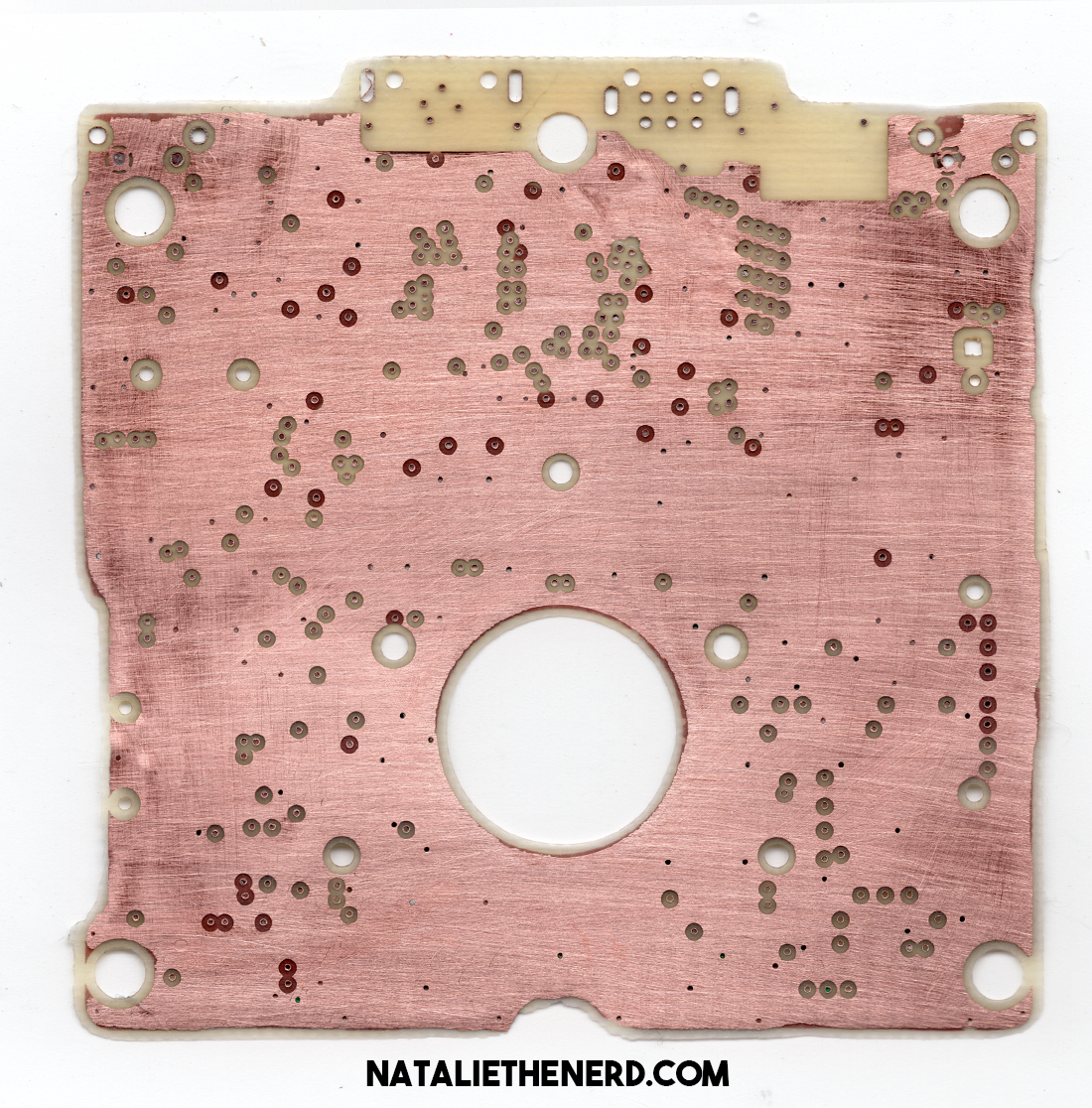

AGS CPU 11 copper ground​

Game Boy Advance SP Copper Scan Ground

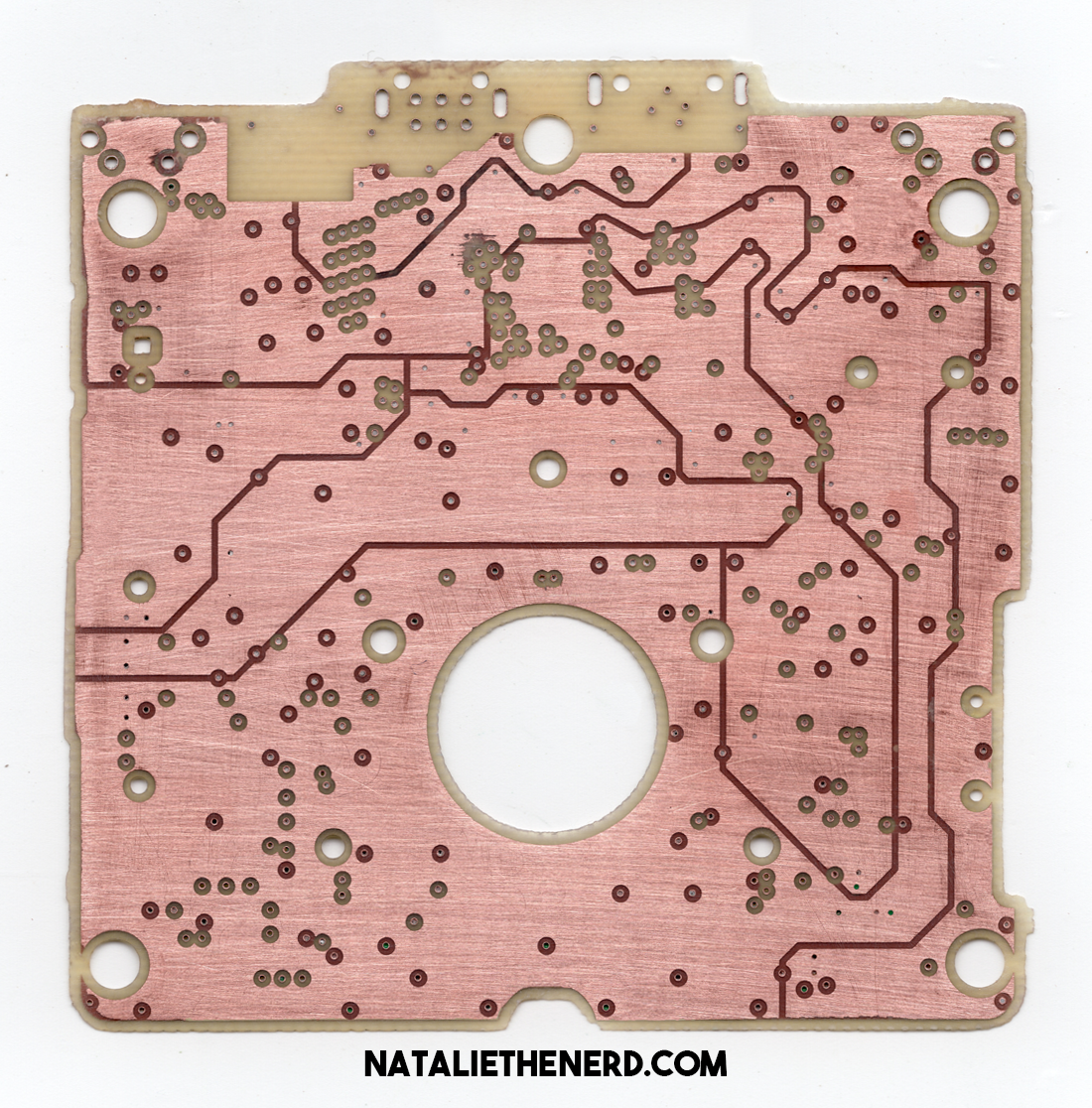

AGS CPU 11 copper power​

Game Boy Advance SP Copper Scan Power

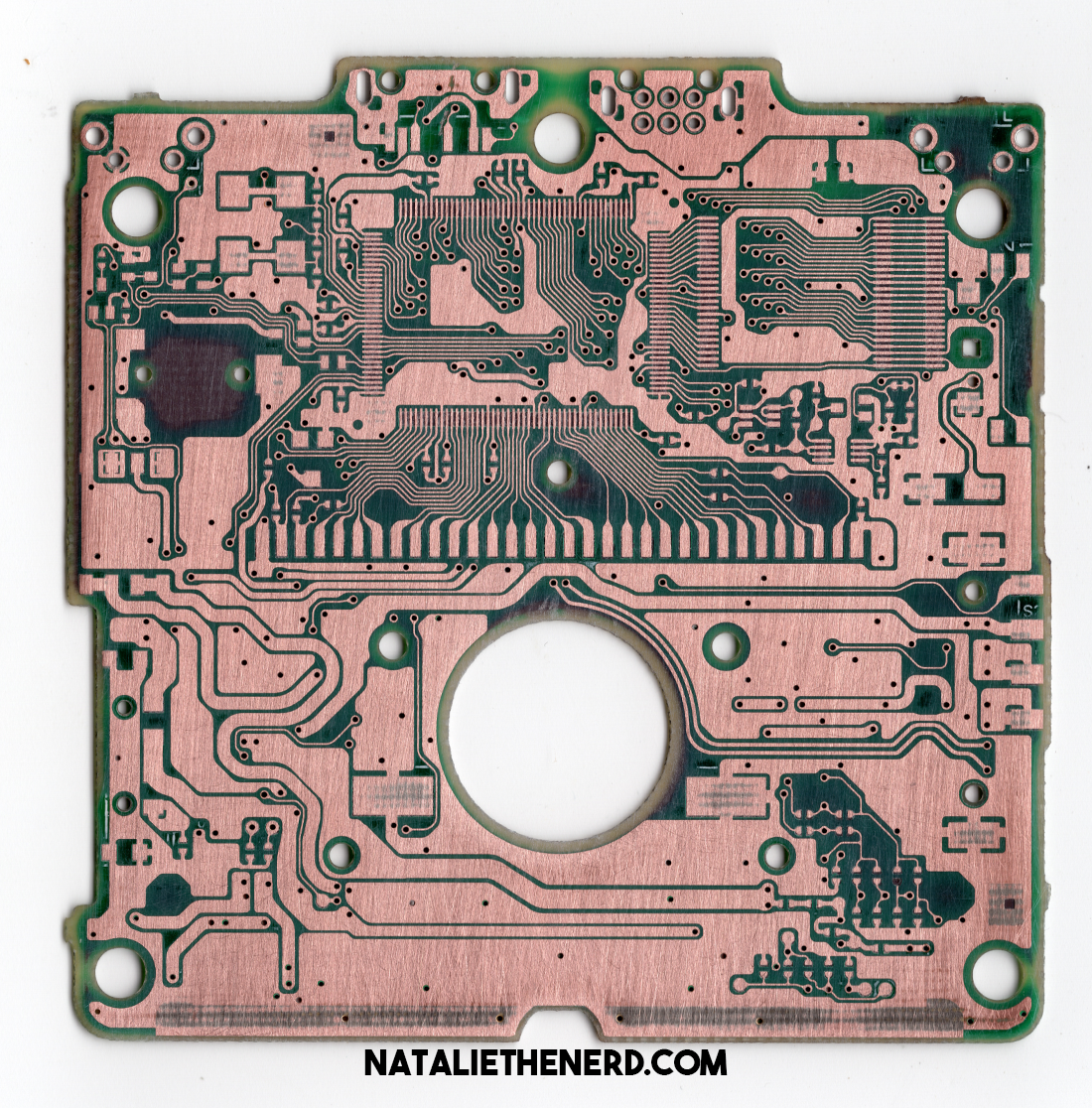

AGS CPU 11 copper back​

Game Boy Advance SP Copper Scan Back
