Game Boy Pocket Scans

Scans are from MGB-LCPU-01

click the image to see it full size

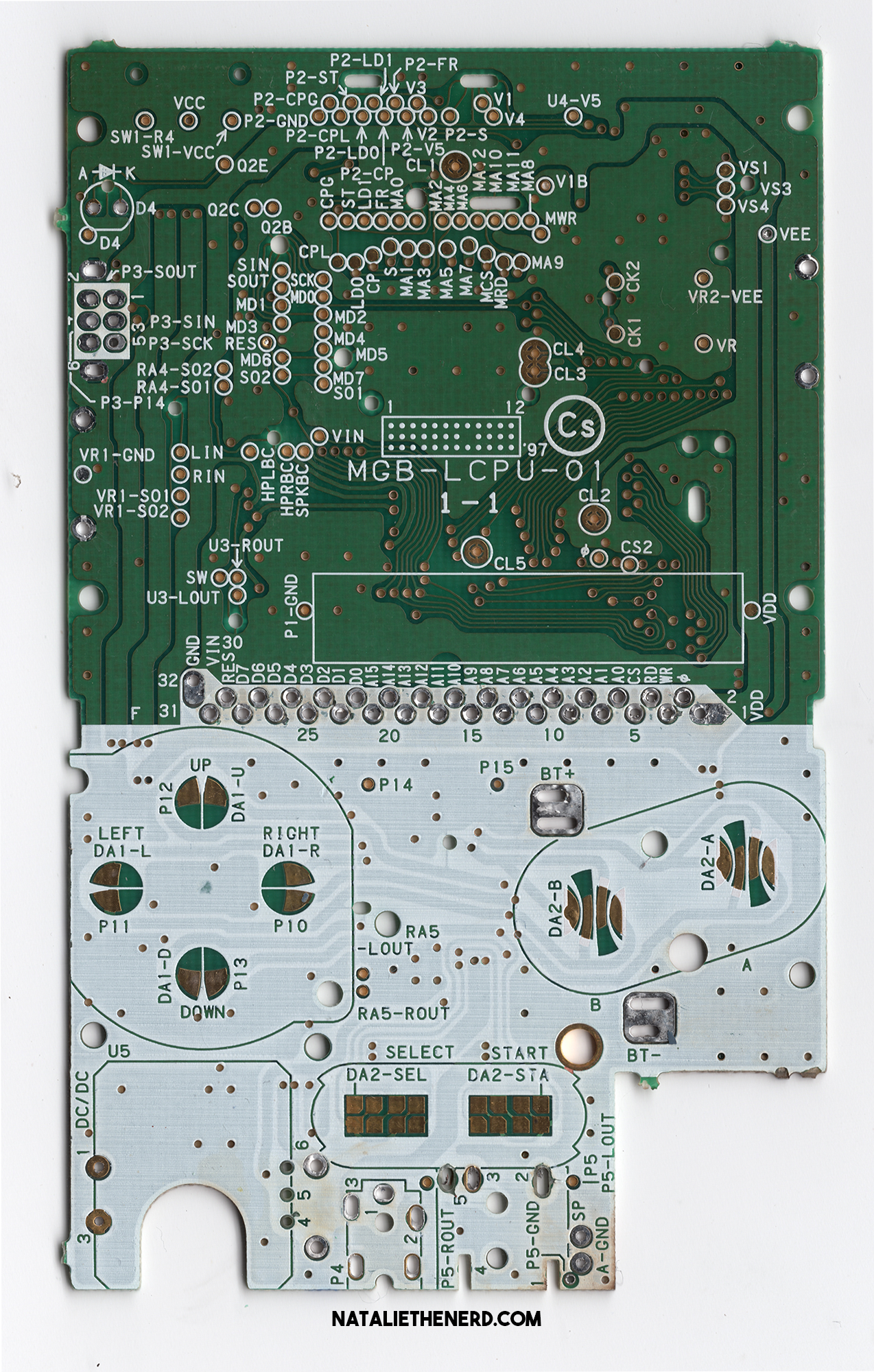

MGB LCPU 01 soldermask front​

mgb01_soldermaskfront

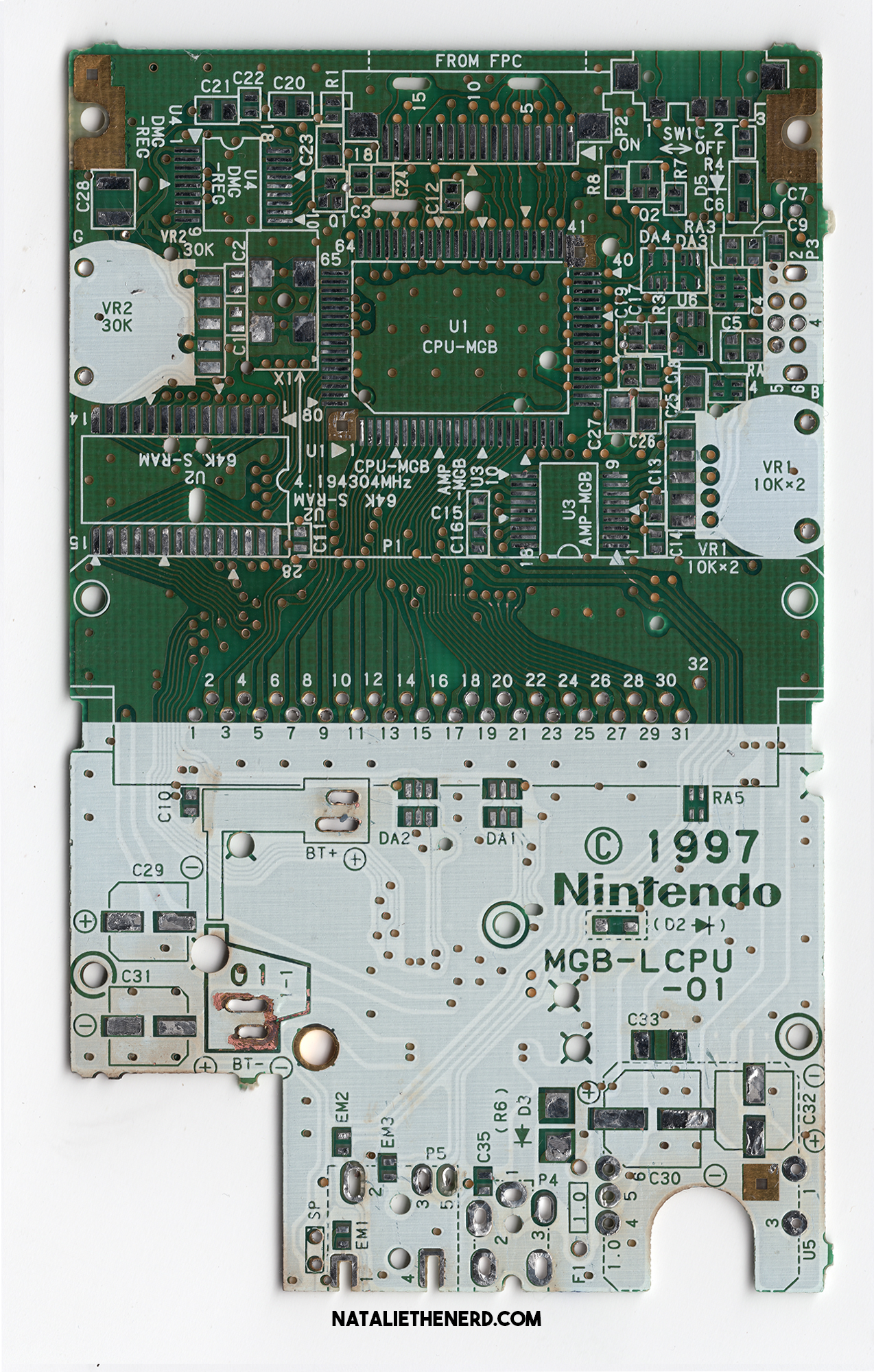

MGB LCPU 01 soldermask back​

mgb01_soldermaskback

MGB LCPU 01 copper front​

mgb01_copperfront

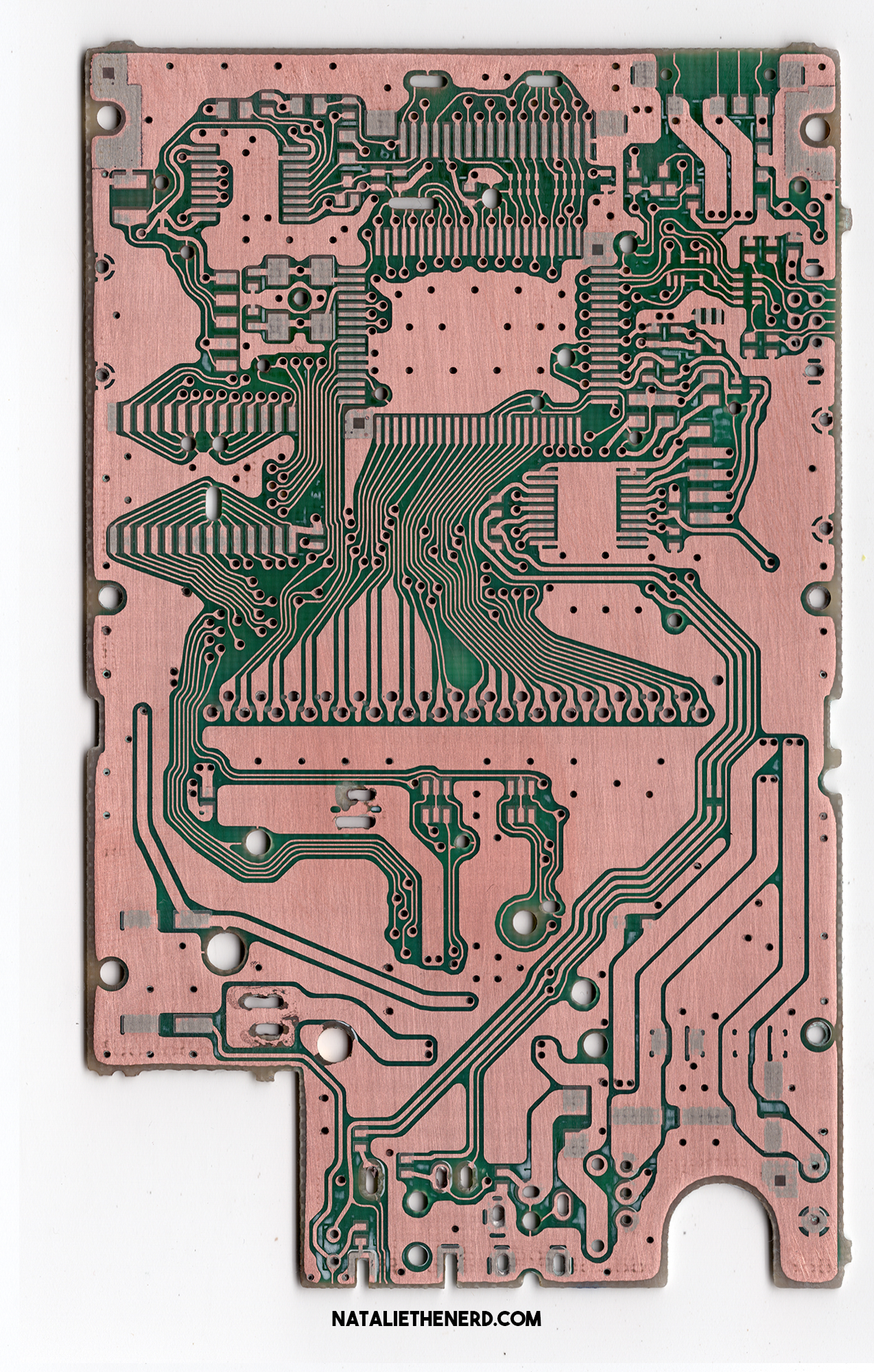

MGB LCPU 01 copper back​

mgb01_copperback
