CGB CPU 04​

Scans are from CGB-CPU-04 and CGB-CPU-06 (CPU E). CPU 06 has a different pinout then the rest of the revisions as the SRAM is inside the die.

click the image to see it full size

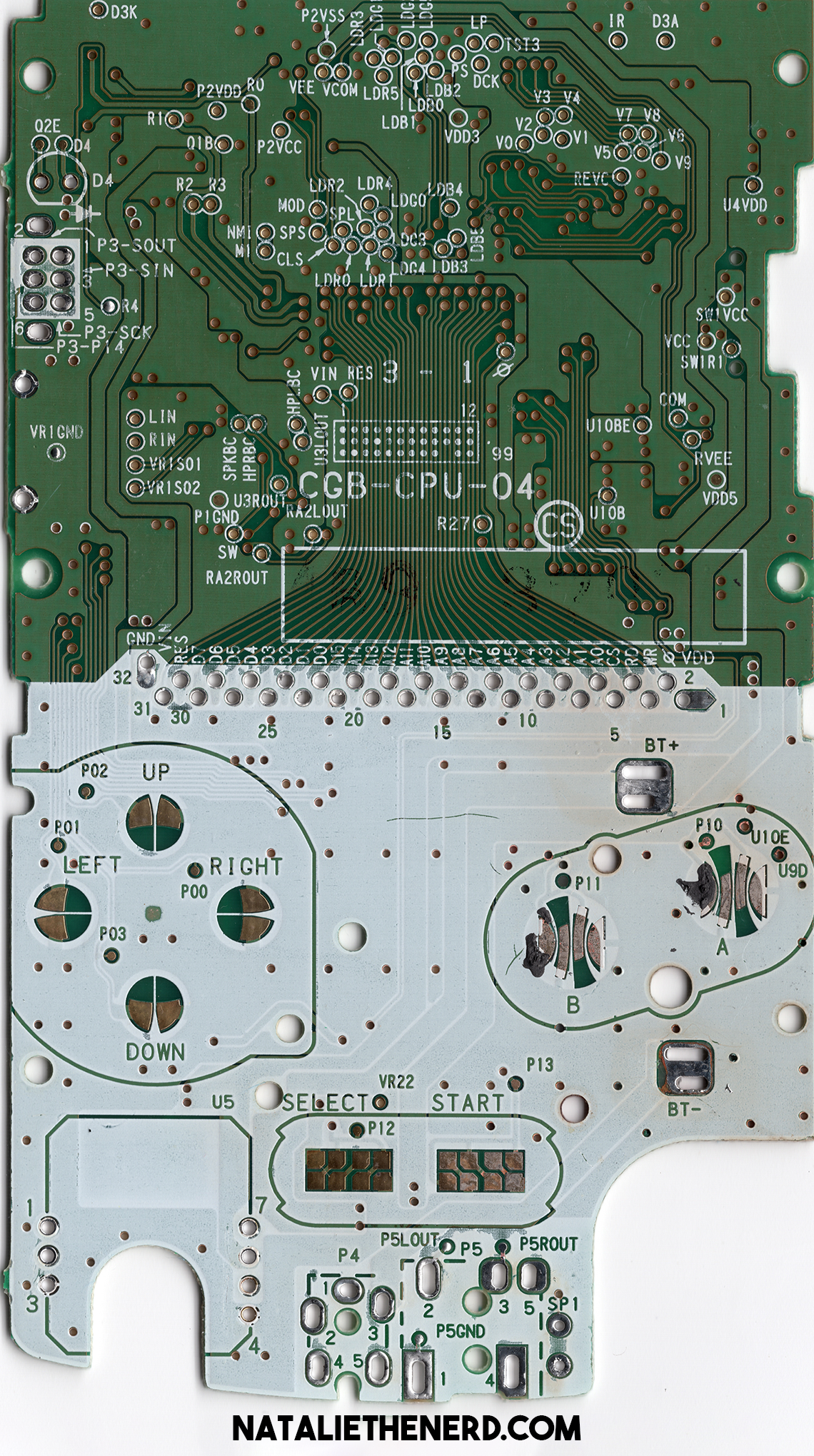

CGB CPU 04 soldermask front​

Game Boy Color CGB CPU 04 Scan Front

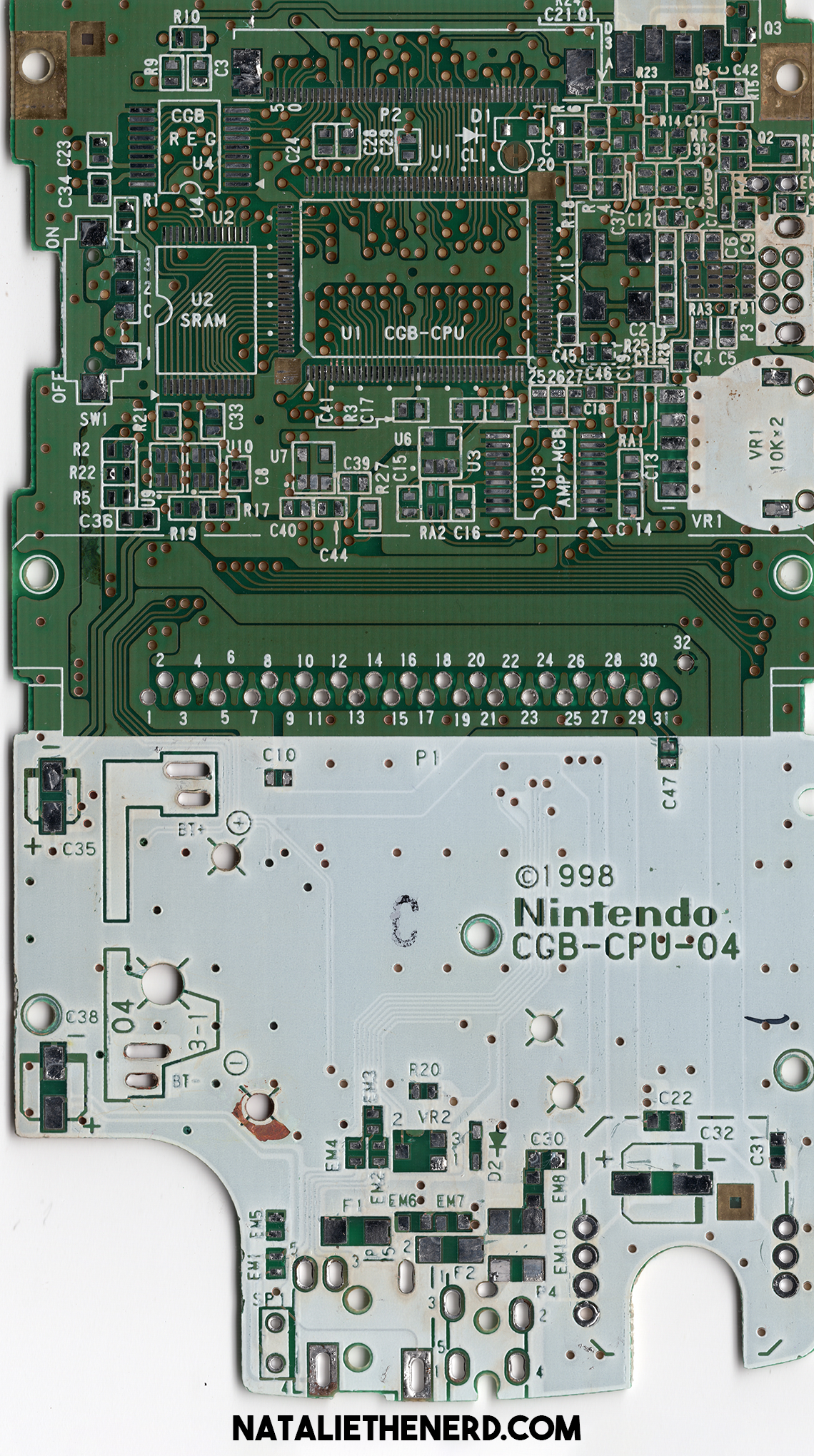

CGB CPU 04 soldermask back​

Game Boy Color CGB CPU 04 Scan Back

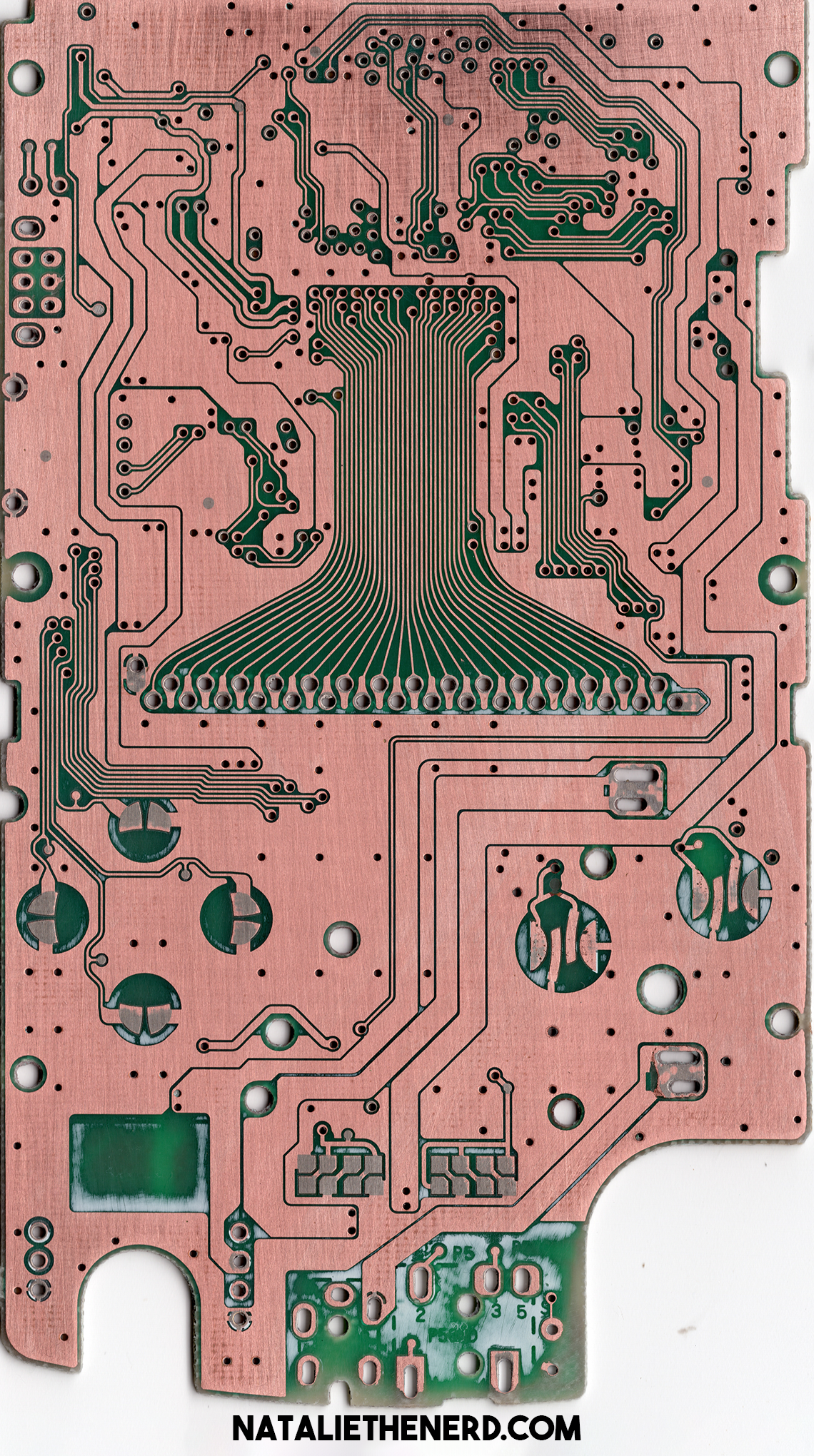

CGB CPU 04 copper front​

Game Boy Color CGB CPU 04 Copper Scan Front

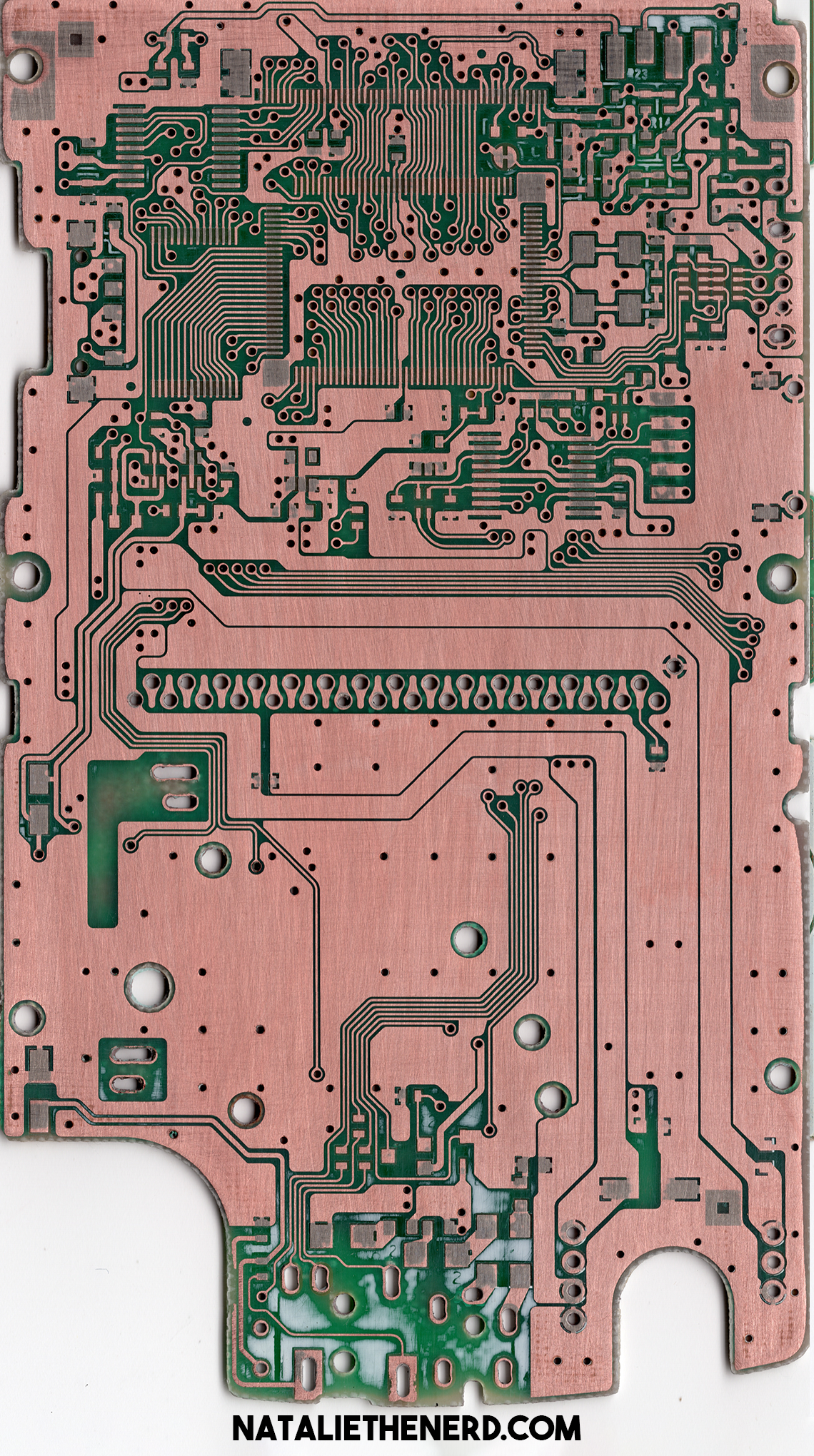

CGB CPU 04 copper back​

Game Boy Color CGB CPU 04 Copper Scan Back

CGB CPU 06​

CGB 06 soldermask front​

Game Boy Color CGB CPU 06 Scan Front

CGB CPU 06 soldermask back​

Game Boy Color CGB CPU 06 Scan Back

CGB CPU 06 copper front​

Game Boy Color CGB CPU 06 Copper Scan Front

CGB CPU 06 copper back​

Game Boy Color CGB CPU 06 Copper Scan Back
