DS Lite Scans

Scans are from USG-CPU-10

click the image to see it full size

This board consists of 6 layers.

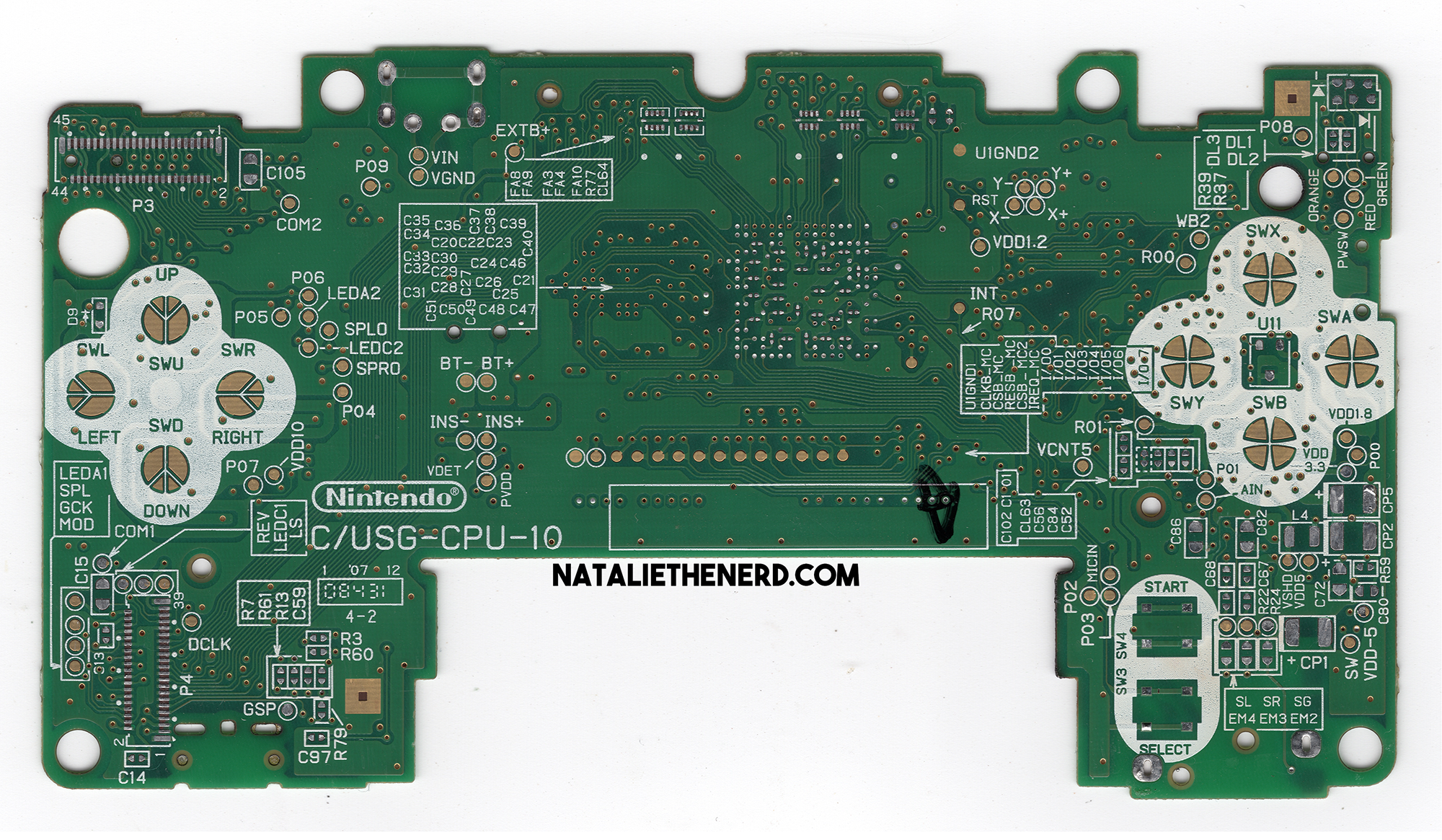

USG CPU 10 soldermask front​

USG10_soldermaskfront

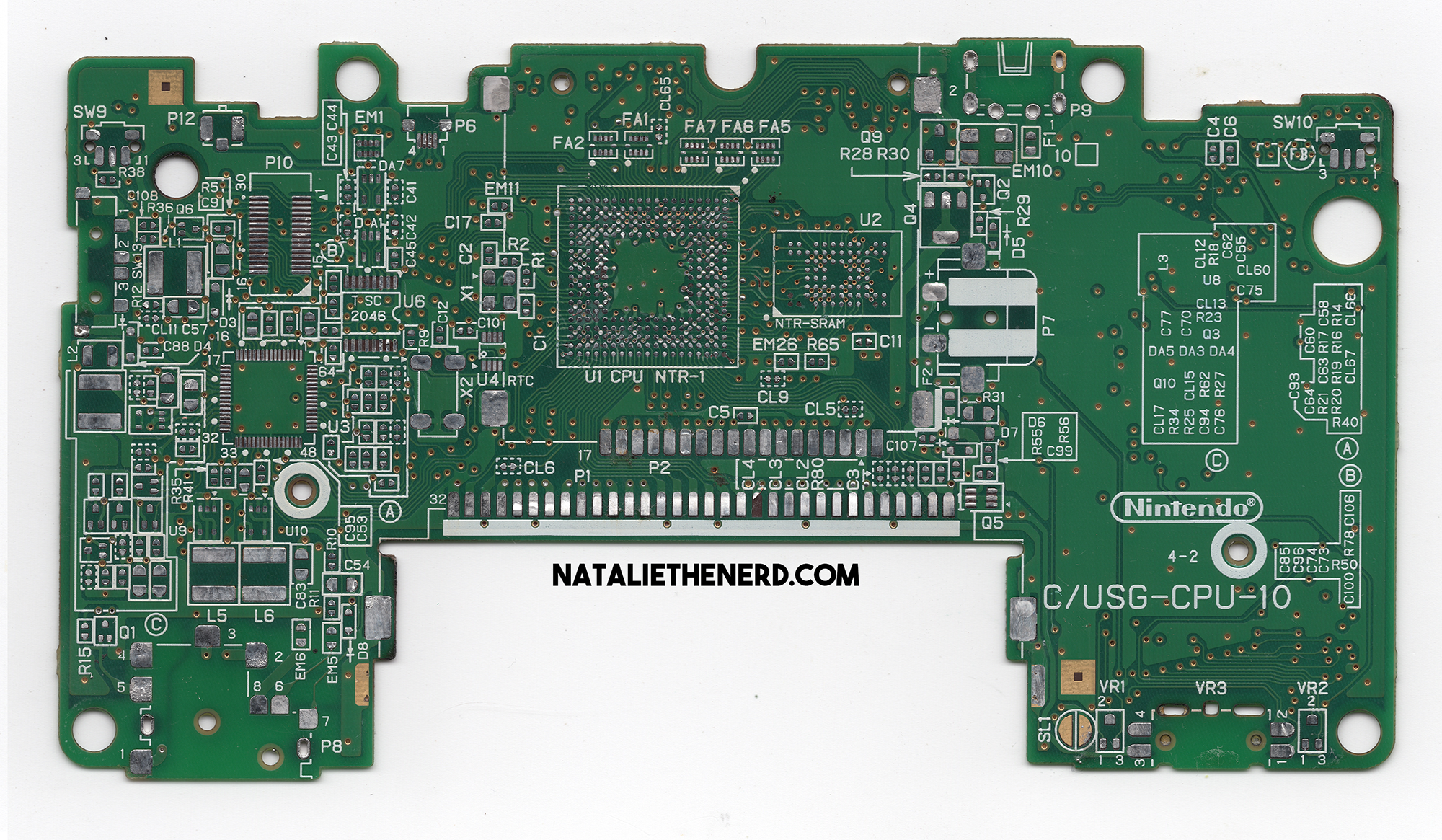

USG CPU 10 soldermask back​

USG10_soldermaskback

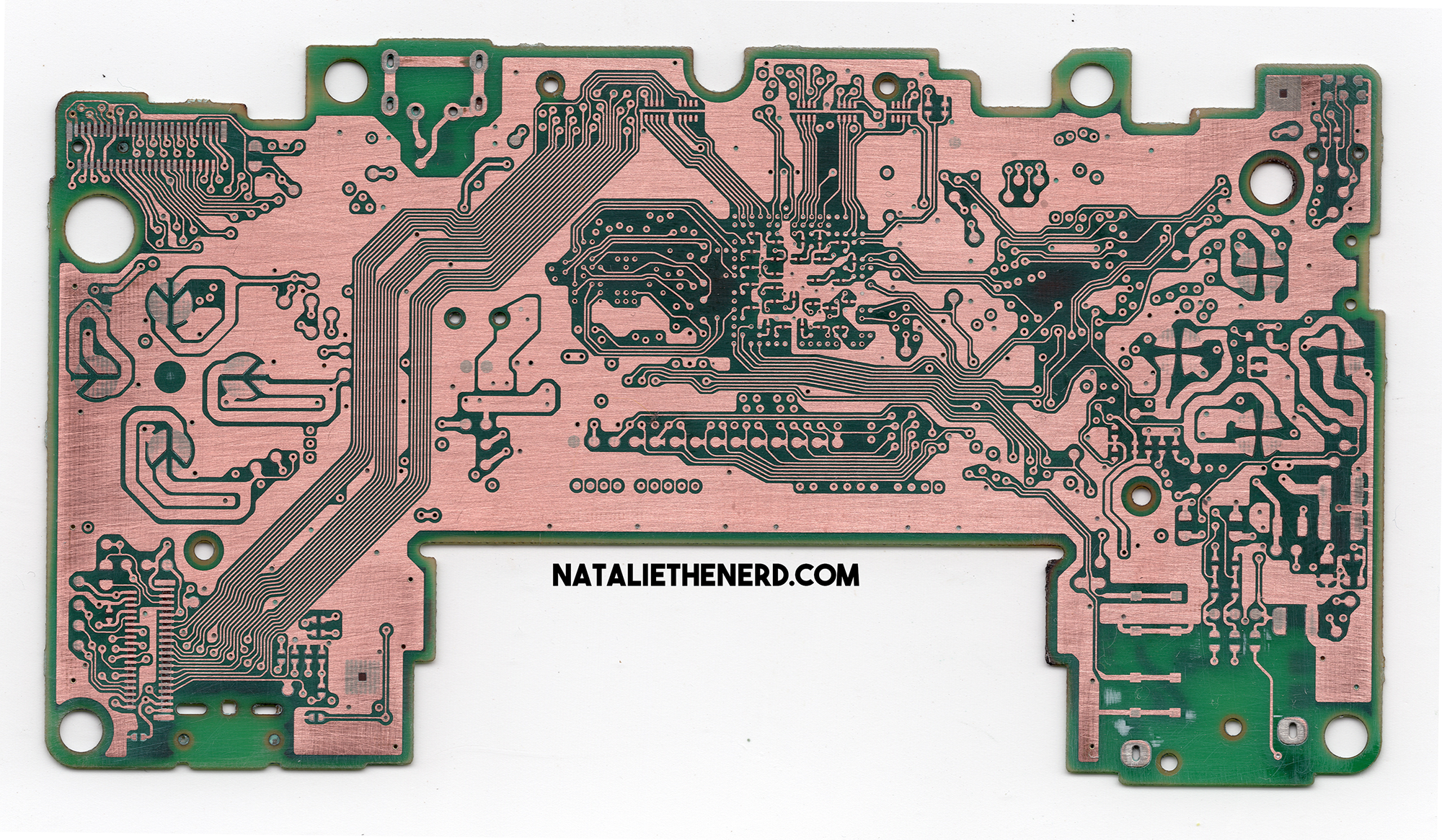

USG CPU 10 copper front​

USG10_copperfront

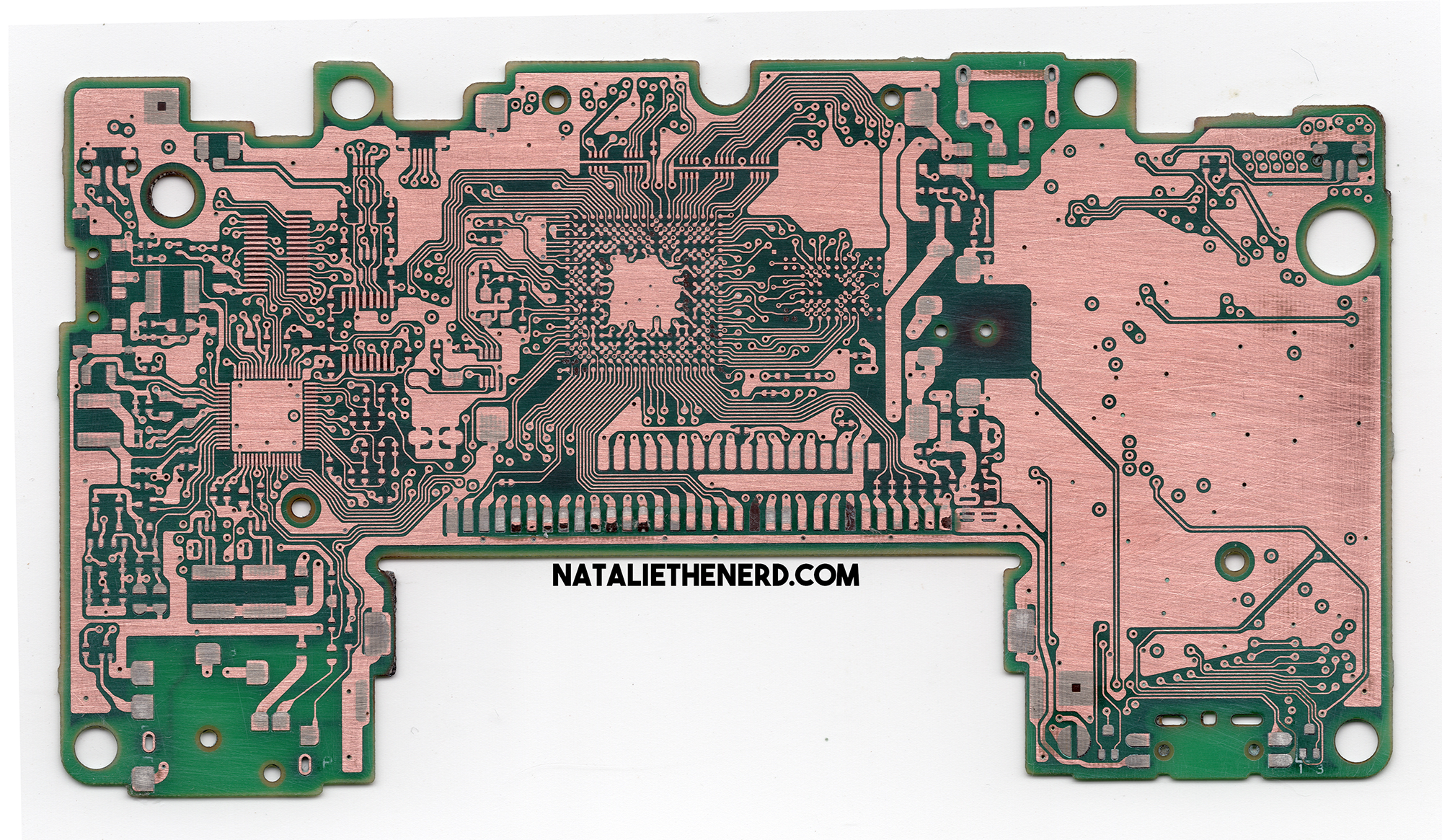

USG CPU 10 copper back​

USG10_copperback

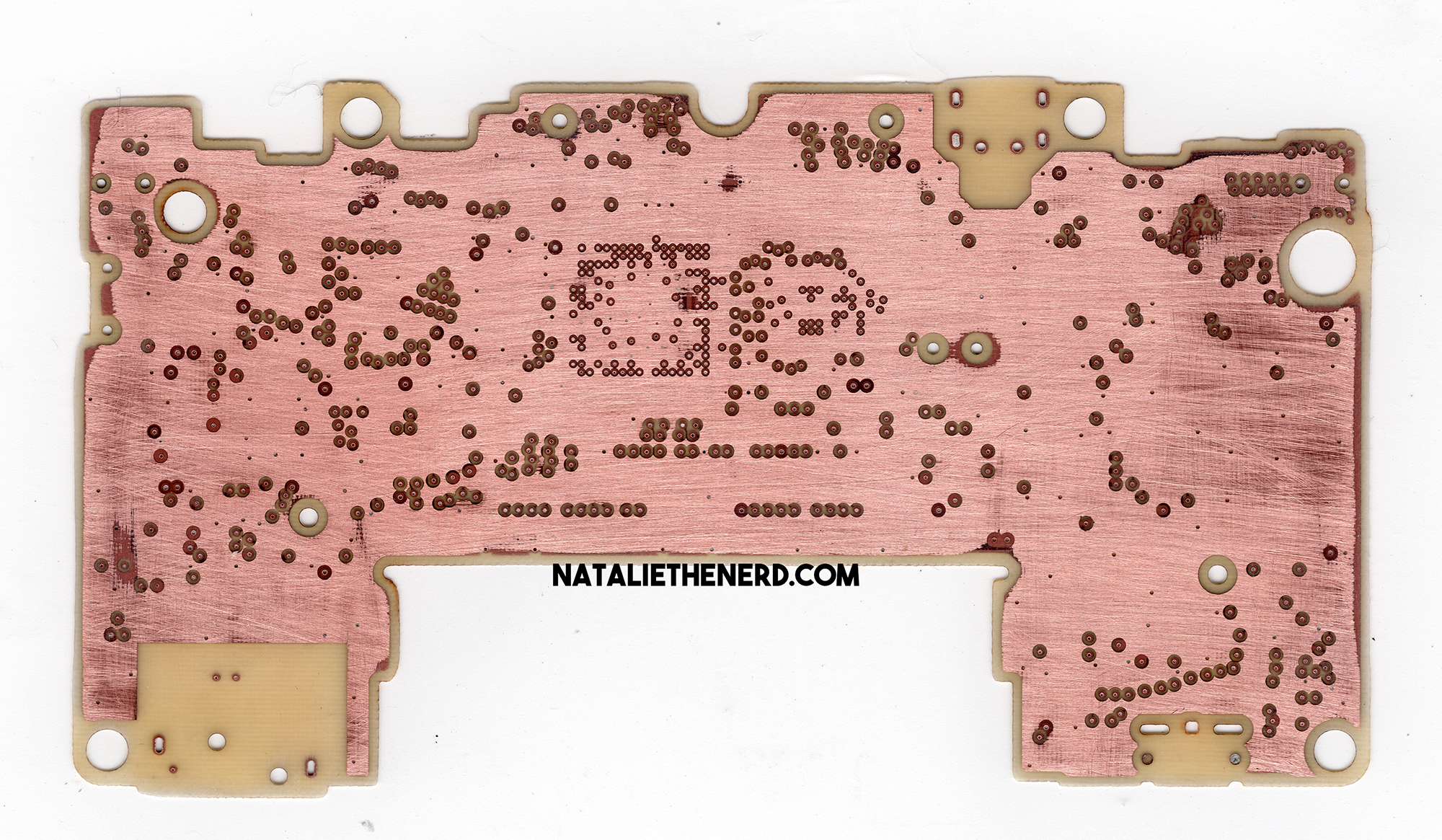

USG CPU 10 copper ground​

USG10_coppergnd

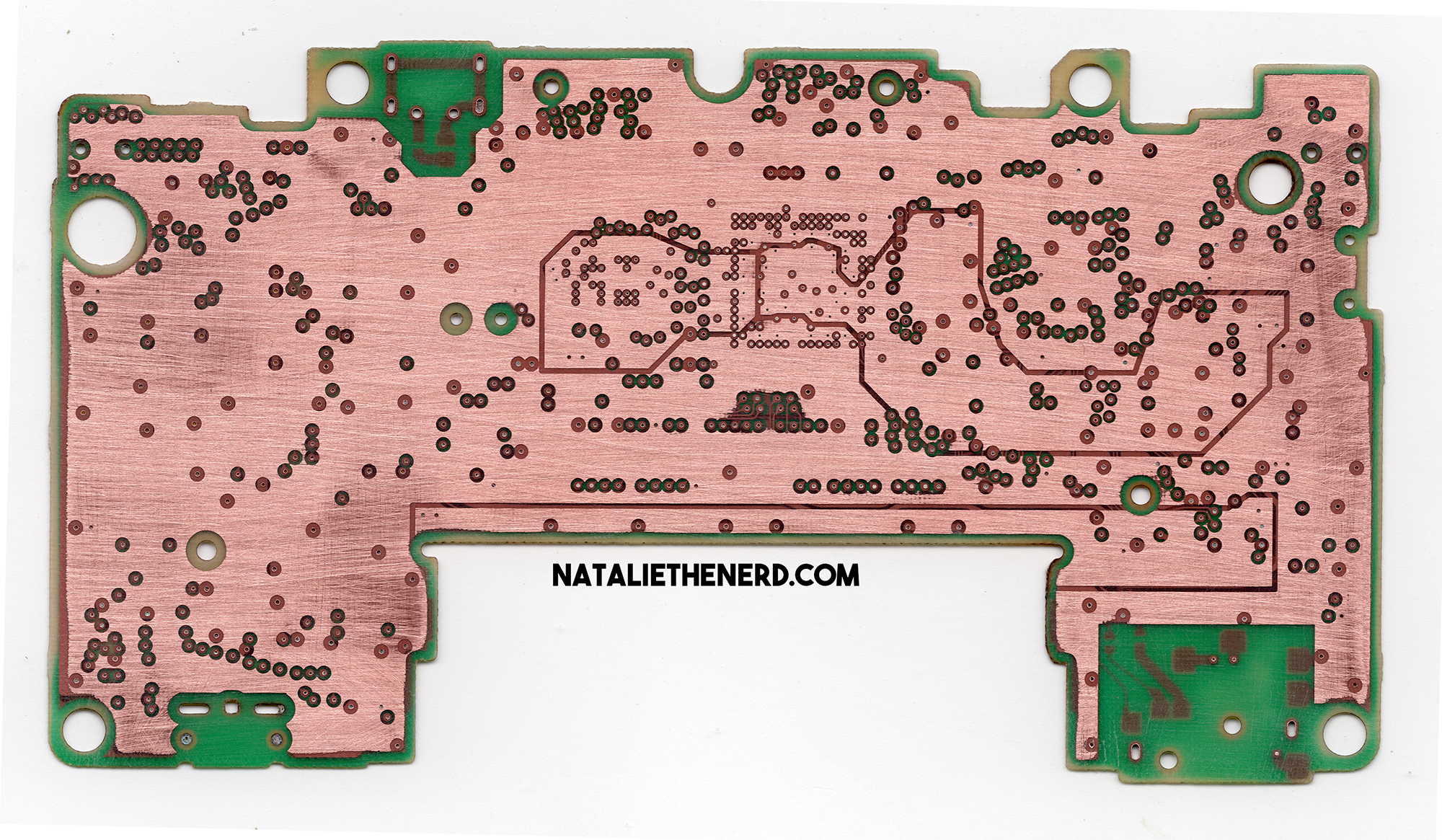

USG CPU 10 copper power​

USG10_copperpower

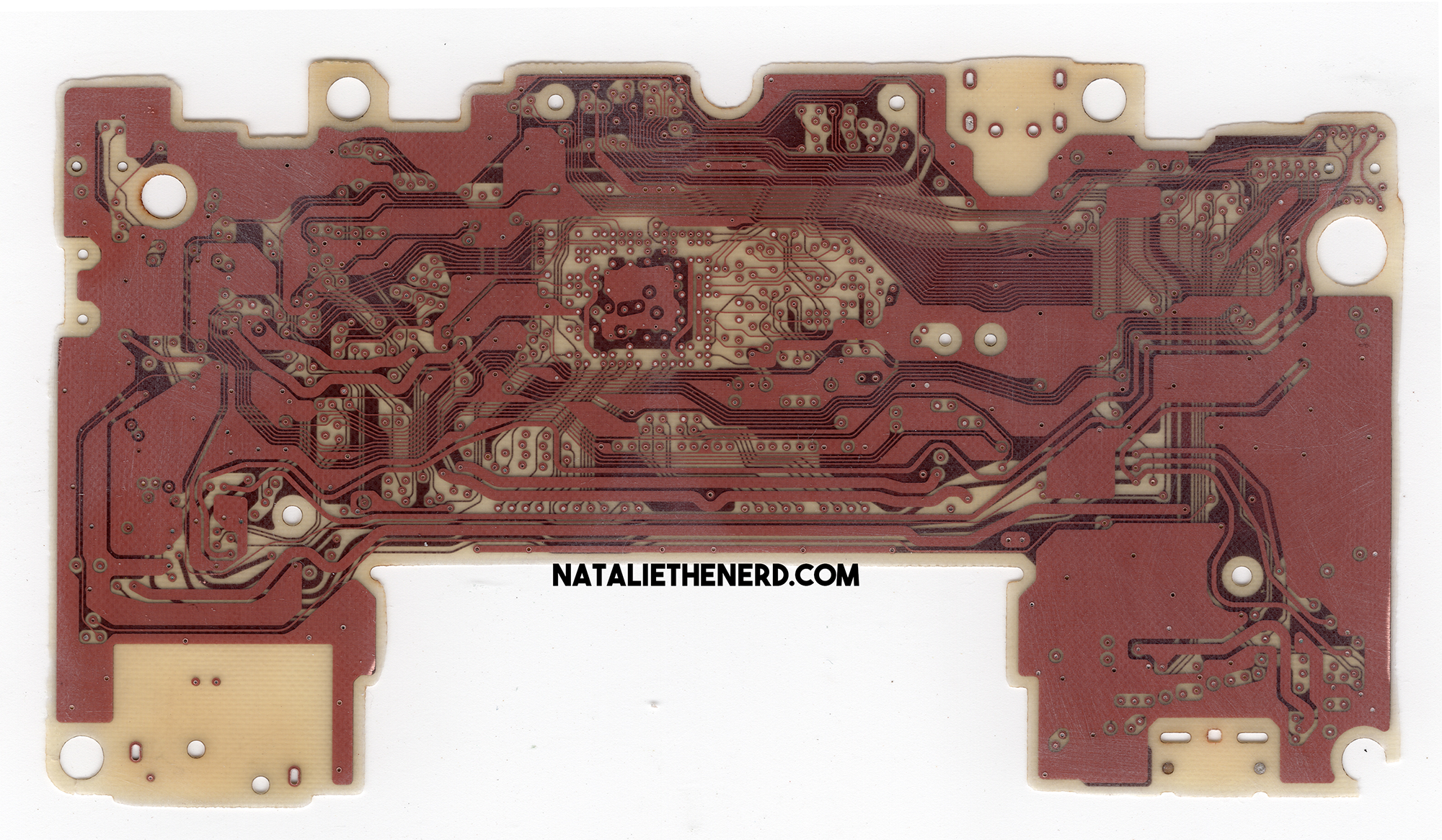

USG CPU 10 copper inner signal 1​

USG10_copperinnersignal1

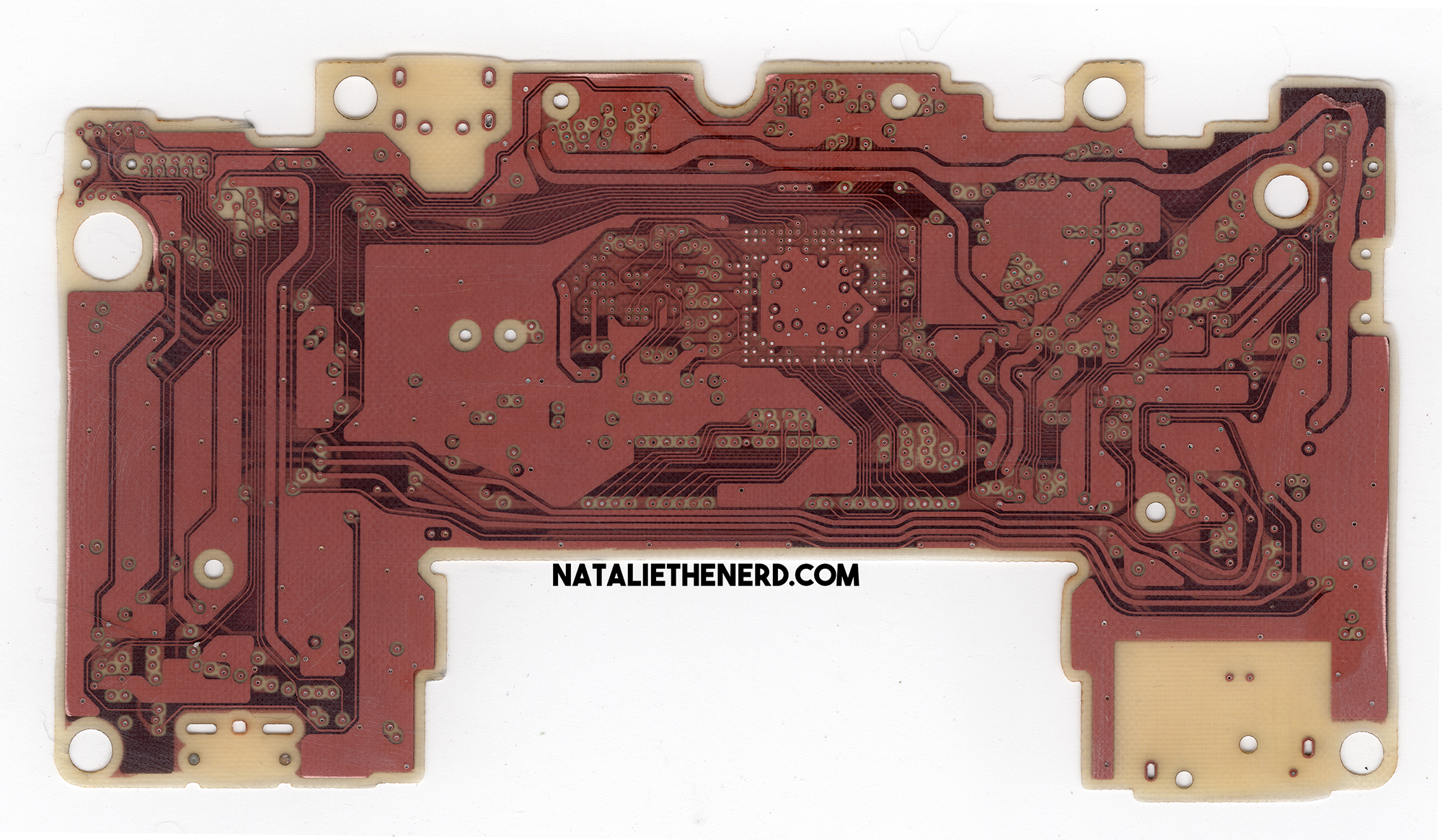

USG CPU 10 copper inner signal 2​

USG10_copperinnersignal2
